Series NP
Series NP

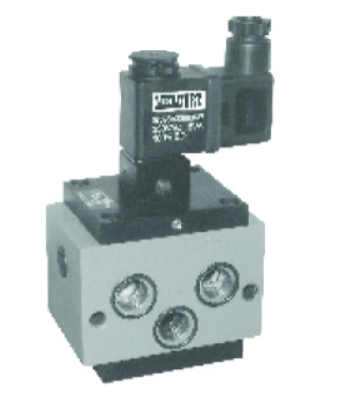

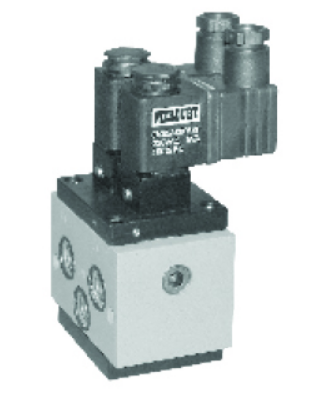

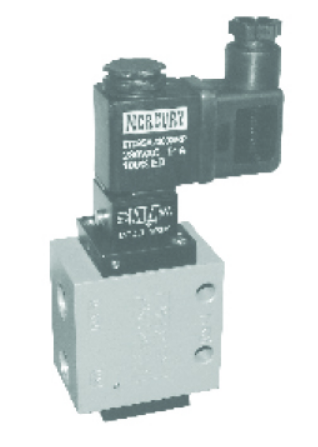

Series ‘N P ‘Poppet valves consist of 3 WAY and 4 WAY configuration valves
They are available in G1/4”, G1/2”, G3/4” and G 1” BSP options
These valves come with the M22 series coils and armatures.
The detailed models are listed below
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| NP312✻ | 3/2 (3 WAY) NORMALLY CLOSED POPPET TYPE SOLENOID VALVE | 1/4″ | SKNP312 |
| NP314✻ | 1/2″ | SKNP314 | |
| NP315✻ | 3/8″ | SKNP315 | |
| NP316✻ | 3/4″ | SKNP316 | |
| NP312E✻ | 3/2 (3 WAY) NORMALLY CLOSED POPPET TYPE SOLENOID VALVE WITH EXTERNAL PILOT | 1/4″ | SKNP312E |
| NP314E✻ | 1/2″ | SKNP314E | |
| NP315E✻ | 3/8″ | SKNP315E | |
| NP316E✻ | 3/4″ | SKNP316E | |
| NP412✻ | 3/2 (3 WAY) NORMALLY OPEN POPPET TYPE SOLENOID VALVE | 1/4″ | SKNP412 |
| NP414✻ | 1/2″ | SKNP414 | |
| NP415✻ | 3/8″ | SKNP415 | |
| NP412E✻ | 3/2 (3 WAY) NORMALLY OPEN POPPET TYPE SOLENOID VALVE WITH EXTERNAL PILOT | 1/4″ | SKNP412E |
| NP414E✻ | 1/2″ | SKNP414E | |
| NP415E✻ | 3/4″ | SKNP415E |
*Add Voltage & Connector Suffix While Ordering
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| NP612✻ | 1/4″ | SKNP612 | |
| NP614✻ | 1/2″ | SKNP614 | |
| NP615✻ | 3/4″ | SKNP615 |
*Add Voltage & Connector Suffix While Ordering
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| NP622✻ | 1/4″ | SKNP622 | |
| NP624✻ | 1/2″ | SKNP624 | |
| NP625✻ | 3/4″ | SKNP625 |
*Add Voltage & Connector Suffix While Ordering
