Series P
Series P
Series ‘P ‘Poppet valves consist of 2WAY configuration N.C and N.O type valves.
They are available in G1/4”, G1/2”, G3/4” and G 1” BSP options
These valves come with the M32 series coils and armatures.
The detailed models are listed below

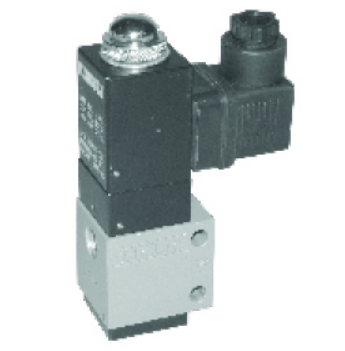

| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| P112✽ | 2/2 (2 WAY) NORMALLY CLOSED POPPET TYPE SOLENOID VALVE |
1/4″ | SKP112 |
| P114✽ | 1/2″ | SKP114 | |
| P115✽ | 3/4″ | SKP115 | |
| P116✽ | 1″ | SKP116 |
*Add Voltage & Connector Suffix While Ordering

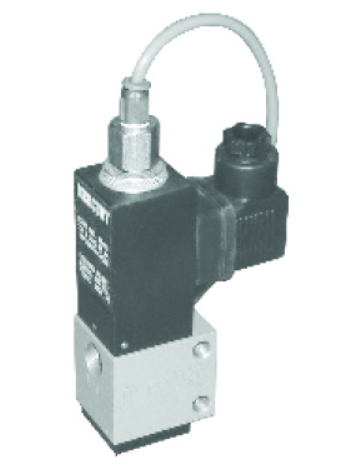

| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| P212✽ | POPPET TYPE SOLENOID VALVE |
1/4″ | SKP212 |
| P214✽ | 1/2″ | SKP214 | |
| P215✽ | 3/4″ | SKP215 | |
| P216✽ | 1″ | SKP216 |
*Add Voltage & Connector Suffix While Ordering
| Valve Housing | Anodised Aluminium |
| Inner Parts | Stainless Steel / Aluminium |
| Seals | Nitrile Rubber |
| Orifice | 13 mm |
| Pressure | Main Line 2 to 20 Bars Pilot Line 3 to 8 Bars |
| Mounting | Any Direction |
| Coil & Timer | Epoxy Moulded Class B |
| Voltage | 230 VAC ± 20% |
| Ambient Temperature | -5 °C to 50 °C |
| Duty | 100% |

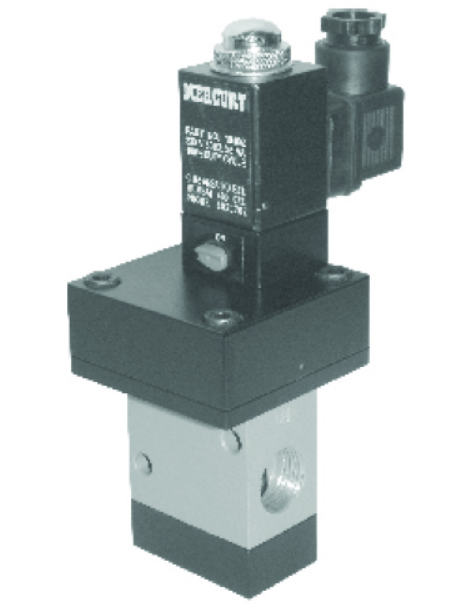

| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| P114AE✽ | 2/2 (2 WAY) NORMALLY CLOSED LOW EXTERNAL PILOT, POPPET TYPE SOLENOID VALVE |
1/2″ | SKP114 |
*Add Voltage & Connector Suffix While Ordering
