‘D’ Series – Standard Valves (Series M32)
‘D’ Series – Standard Valves (Series M32)

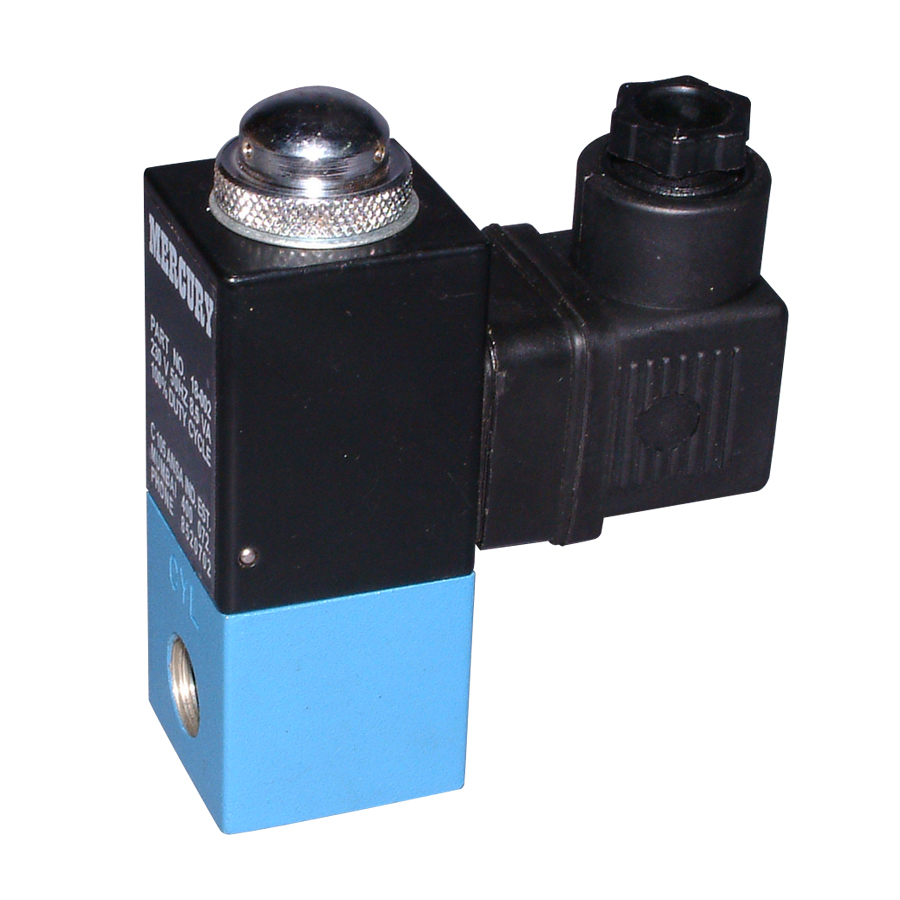

Series ‘D’ direct acting valves consist of the rugged M32 coils and armature.
They are offered in a range of orifices ranging from 1.1mm to 6.00 mm and are available in both 1/8″ and 1/4″ BSP port sizes
They are available in various types of coils ranging from 12VAC till 230VAC and 12VDC till 24VDC
| Model No | Description | Size(BSP) | Seal Kit No |
|---|---|---|---|
| D121* | 2/2 (2 Way) Normally Closed Direct Acting Solenoid Valve | 1/8″ | SKD121 |
| D122* | 2/2 (2 Way) Normally Closed Direct Acting Solenoid Valve | 1/4″ | SKD122 |
| D321* | 3/2 (3 Way) Normally Closed Direct Acting Solenoid Valve | 1/8″ | SKD321 |
| D322* | 3/2 (3 Way) Normally Closed Direct Acting Solenoid Valve | 1/4″ | SKD322 |
*Add Voltage & Connector Suffix While Ordering
| Model No | Description | Size(BSP) | Seal Kit No |
|---|---|---|---|
| D221* | 2/2 (2 Way) Normally Open Direct Acting Solenoid Valve | 1/8″ | SKD221 |
| D222* | 2/2 (2 Way) Normally Open Direct Acting Solenoid Valve | 1/4″ | SKD222 |
| D421* | 3/2 (3 Way) Normally Open Direct Acting Solenoid Valve | 1/8″ | SKD421 |
| D422* | 3/2 (3 Way) Normally Open Direct Acting Solenoid Valve | 1/4″ | SKD422 |
*Add Voltage & Connector Suffix While Ordering
| Model No | Discription | Size(BSP) | Seal Kit No |
|---|---|---|---|

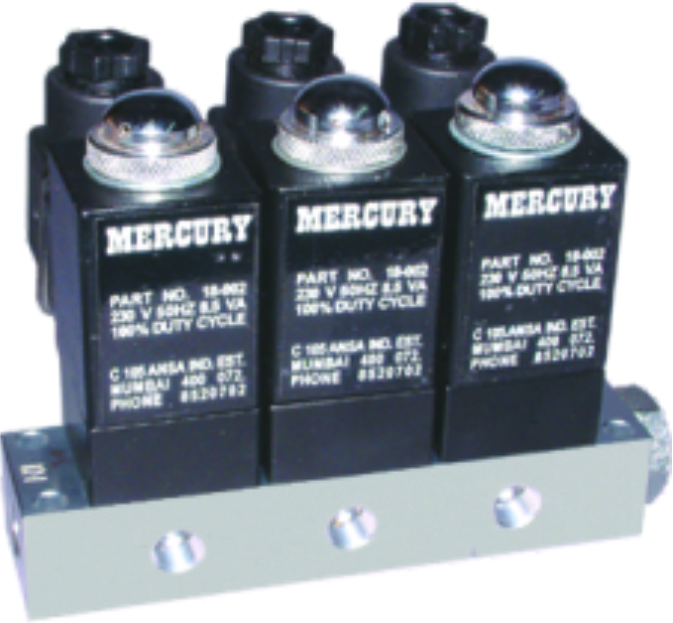

| DG-02* | Gang Manifold Assembly For 2 Valves | 1/4″ | SKDG-02 |
| DG-03* | Gang Manifold Assembly For 3 Valves | 1/4″ | SKDG-03 |
| DG-04* | Gang Manifold Assembly For 4 Valves | 1/4″ | SKDG-04 |
| DG-05* | Gang Manifold Assembly For 5 Valves | 1/4″ | SKDG-05 |
| DG-06* | Gang Manifold Assembly For 6 Valves | 1/4″ | SKDG-06 |
| DG-07* | Gang Manifold Assembly For 7 Valves | 1/4″ | SKDG-07 |
| DG-08* | Gang Manifold Assembly For 8 Valves | 1/4″ | SKDG-08 |
*Add Voltage & Connector Suffix While Ordering
