MS Series - Compact Pneumatic Valves
MS Series – Compact Pneumatic valves

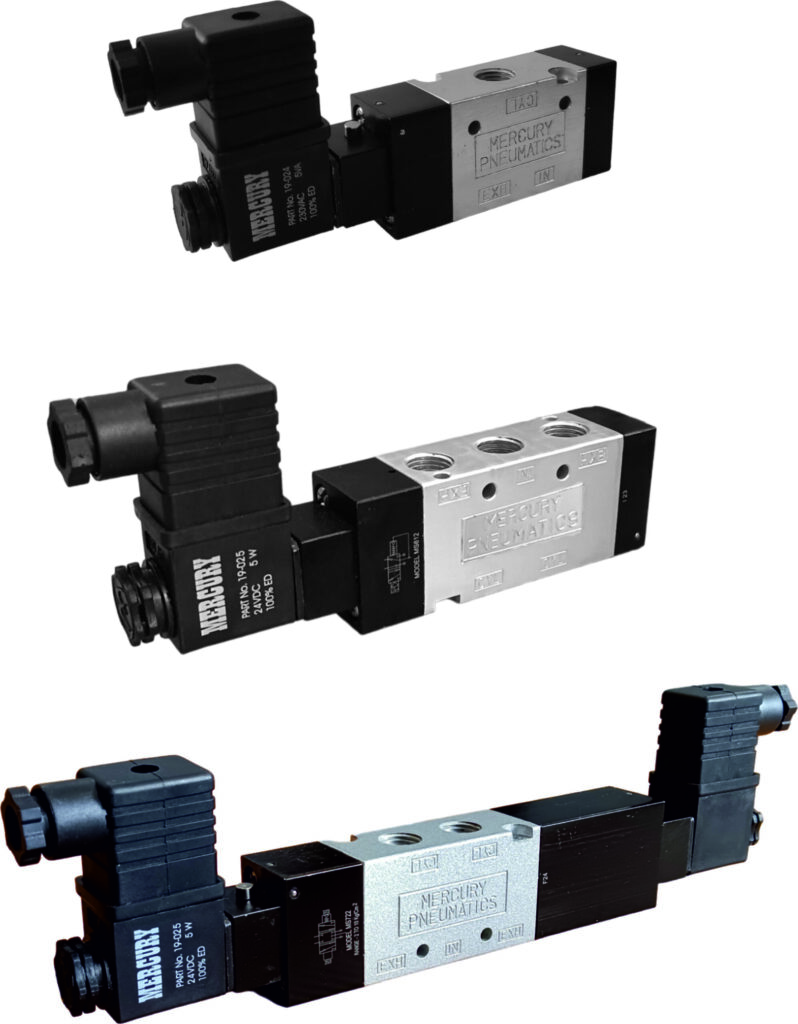

MS series spool type solenoid valves are the compact series Spool valves.
They are available in G1/8” , G1/4” and G1/2” BSP port sizes in 3WAY and 4WAY configurations.

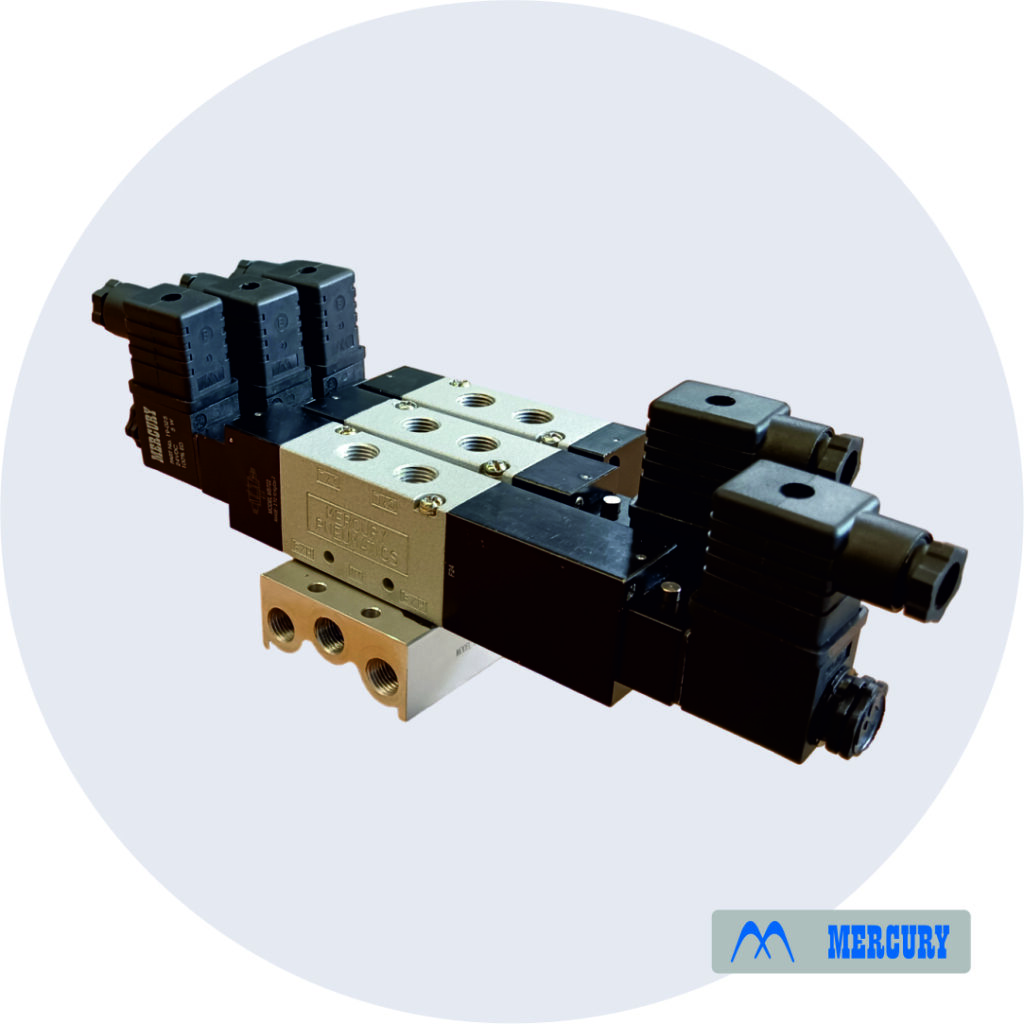

Their unique feature is that they are mountable vertically on a gang manifold and hence have a much smaller footprint then other Sub-base/NAMUR mounted manifold valves
Gang manifold assemblies are available separately
The detailed models are listed below.
| Model No | Description | Size(BSP) | Seal Kit No |
|---|---|---|---|

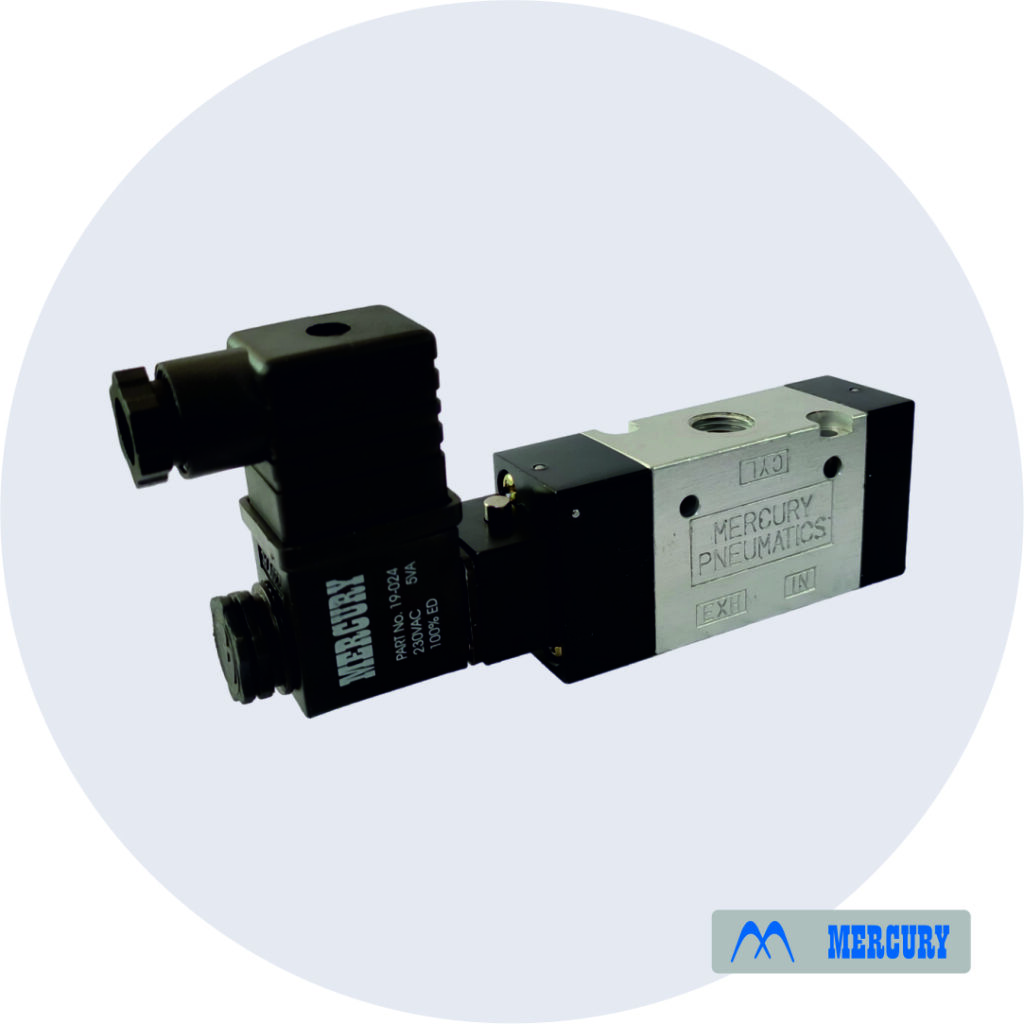

| MS311* | 3/2 (3 Way) Normally Closed Solenoid-Air Spring valve | 1/8″ | SKMS311 |
| MS312* | 3/2 (3 Way) Normally Closed Solenoid-Air Spring valve | 1/4″ | SKMS312 |
| MS314* | 3/2 (3 Way) Normally Closed Solenoid-Air Spring valve | 1/2″ | SKMS314 |
*Add Voltage & Connector Suffix While Ordering
| Model No | Description | Size(BSP) | Seal Kit No |
|---|---|---|---|

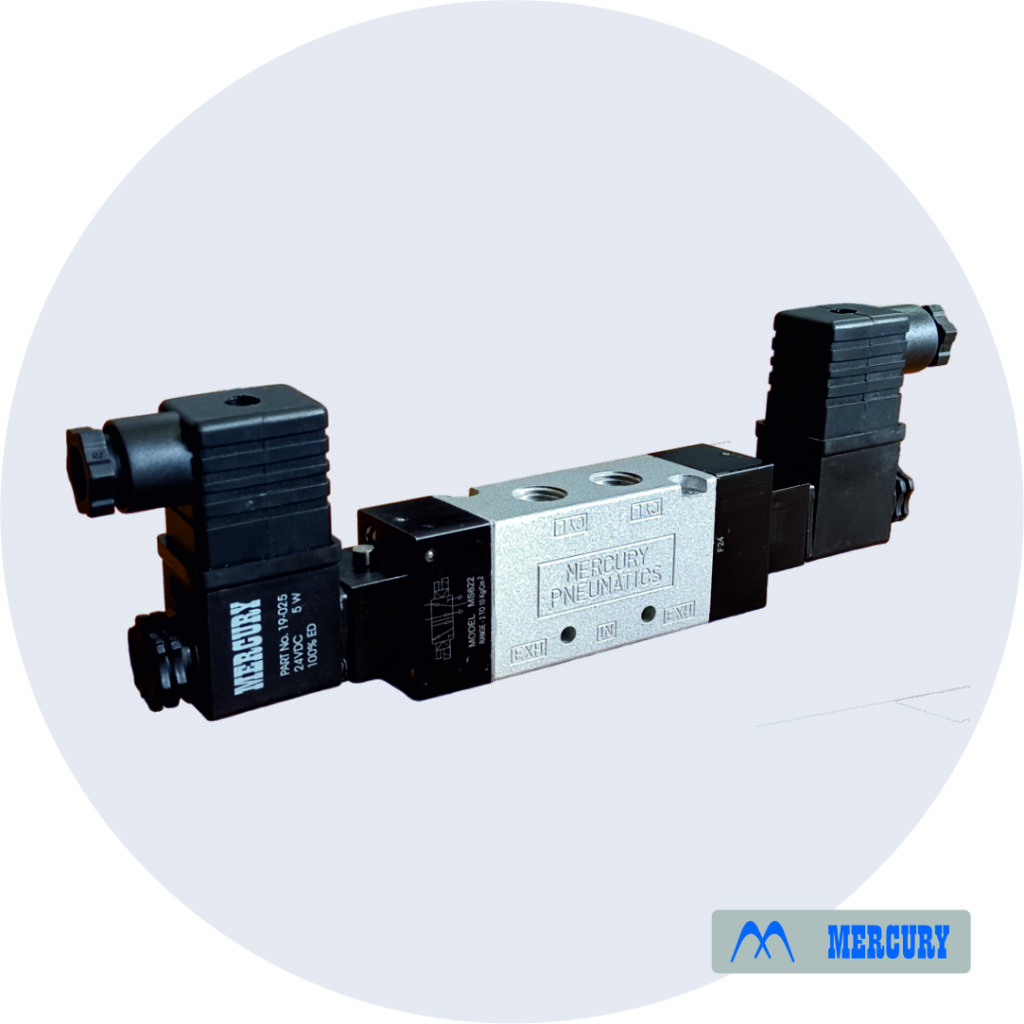

| MS621* | 5/2 ( 4 Way 2 Position) Solenoid -Solenoid Valve | 1/8″ | SKMS621 |
| MS622 | 5/2 ( 4 Way 2 Position) Solenoid -Solenoid Valve | 1/4″ | SKMS622 |
| MS624 | 5/2 ( 4 Way 2 Position) Solenoid -Solenoid Valve | 1/2″ | SKMS624 |
| MS721 | 5/3 ( 4 Way 3 Position) PHN Solenoid -Solenoid Valve | 1/8″ | SKMS721 |
| MS722 | 5/3 ( 4 Way 3 Position) PHN Solenoid -Solenoid Valve | 1/4″ | SKMS722 |
| MS724 | 5/3 ( 4 Way 3 Position) PHN Solenoid -Solenoid Valve | 1/2″ | SKMS724 |
| MS821 | 5/3 ( 4 Way 3 Position) PAN Solenoid -Solenoid Valve | 1/8″ | SKMS821 |
| MS822 | 5/3 ( 4 Way 3 Position) PAN Solenoid -Solenoid Valve | 1/4″ | SKMS822 |
| MS824 | 5/3 ( 4 Way 3 Position) PAN Solenoid -Solenoid Valve | 1/2″ | SKMS824 |
| MS921 | 5/3 ( 4 Way 3 Position) PRN Solenoid -Solenoid Valve | 1/2″ | SKMS921 |
| MS922 | 5/3 ( 4 Way 3 Position) PRN Solenoid -Solenoid Valve | 1/2″ | SKMS922 |
| MS924 | 5/3 ( 4 Way 3 Position) PRN Solenoid -Solenoid Valve | 1/2″ | SKMS924 |
*Add Voltage & Connector Suffix While Ordering
| Model No | Discription | Size(BSP) |
|---|---|---|
| MSG1-XX | Gang Manifold Assembly ( XX = Number of valves) | 1/8″ |
| MSG2-XX | Gang Manifold Assembly ( XX = Number of valves) | 1/4″ |
| MSG4-XX | Gang Manifold Assembly ( XX = Number of valves) | 1/2″ |
XX = 02,03,04,05,06,07,08
