Compact C Frame Presses
Compact C Frame Presses

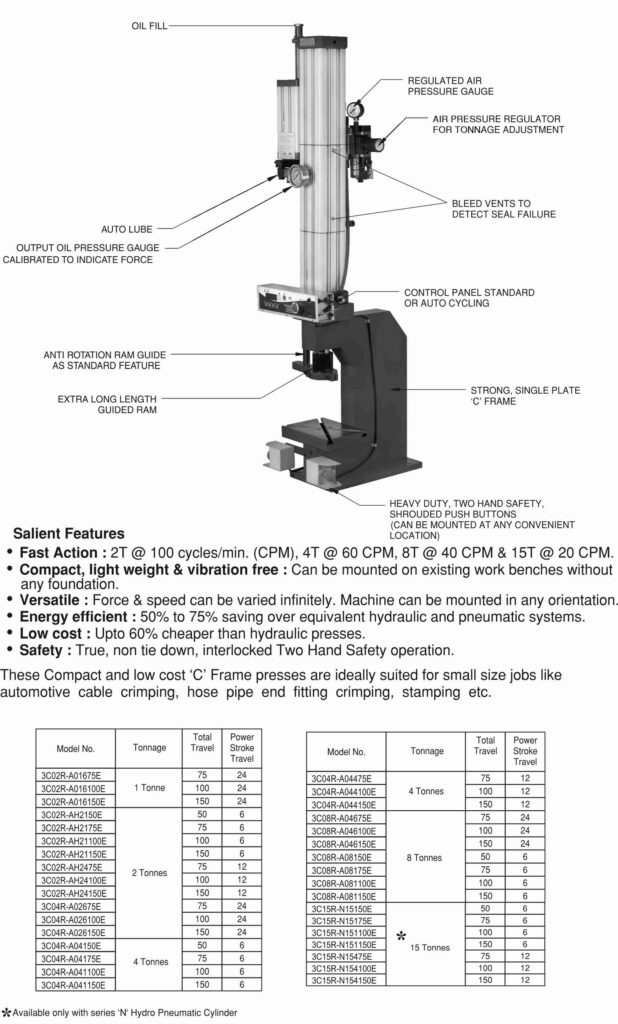

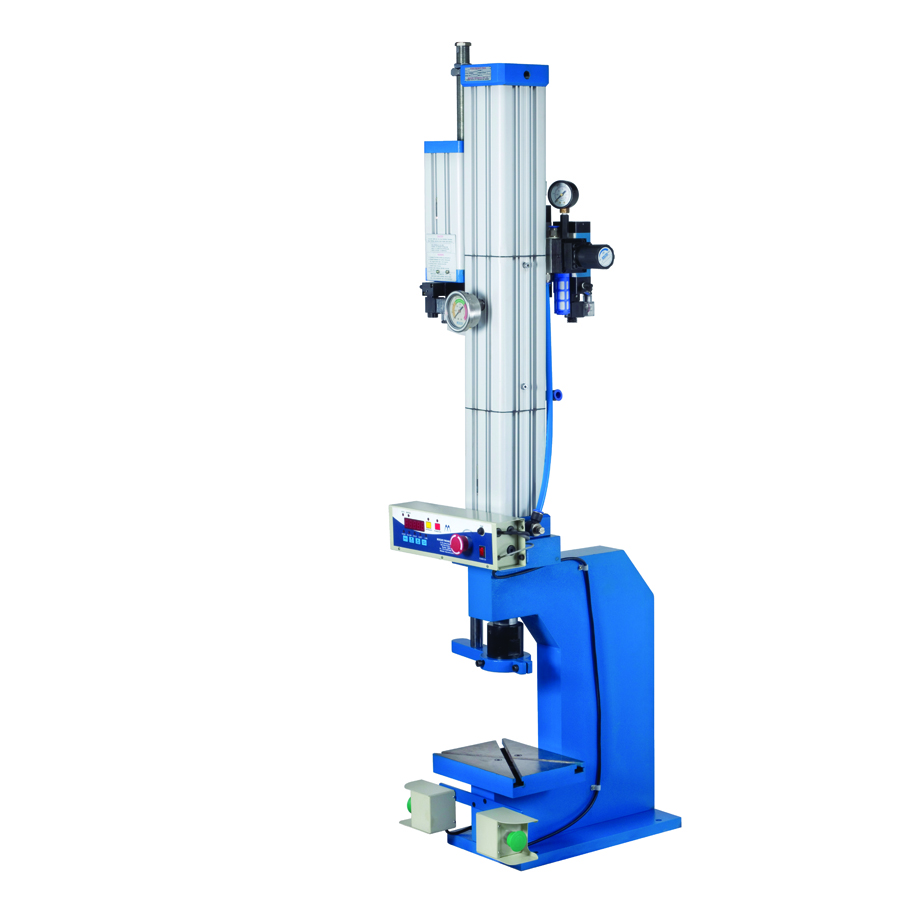

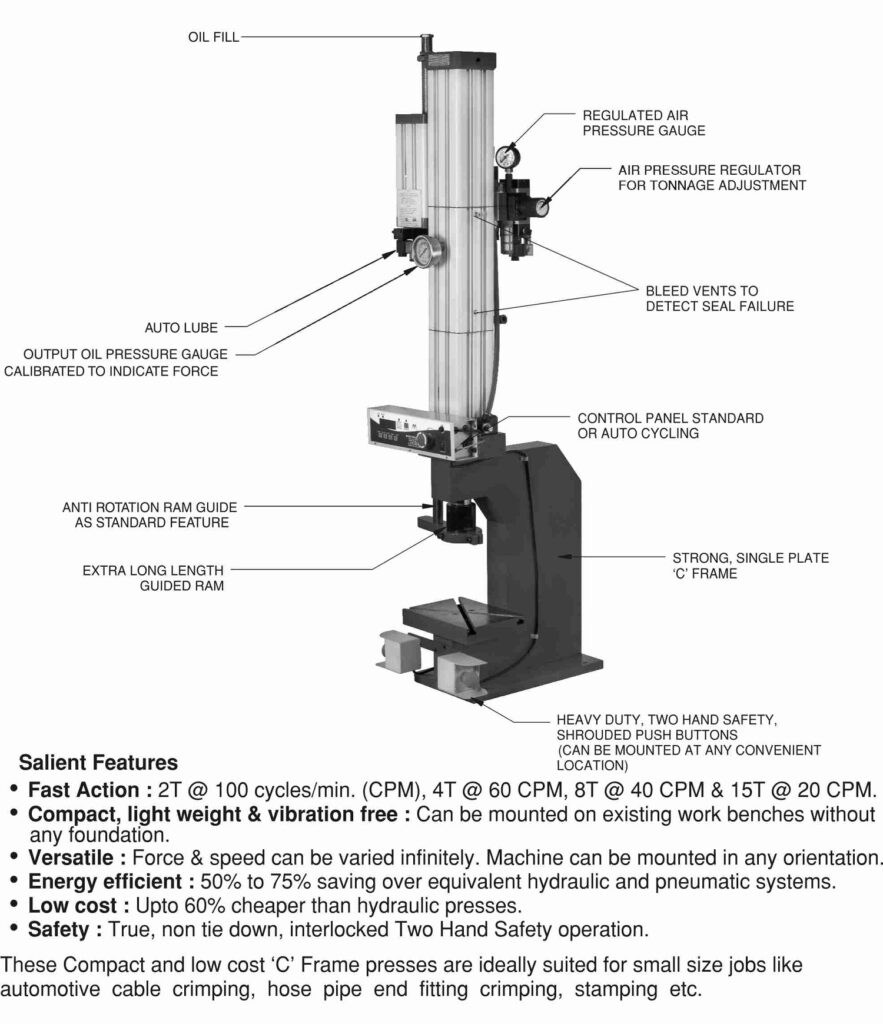

Compact C-Frame presses are specially designed for small components requiring limited spaces. This not only reduces the initial investment but also the space requirement of the machine thus making small manufacturing cell possible. These compact and low cost c-frame presses are ideally suited for small size jobs such as automotive cable crimping, hose pipe end fitting crimping, stamping etc.
Compact ‘C’ Frame Press – 1 & 2 Tonnes
| Model No. | Tonnage | Total Travel | Power Stroke Travel |
|---|---|---|---|
| 3C02R-A01675E | 1 Tonne | 75 | 24 |
| 3C02R-A016100E | 1 Tonne | 100 | 12 |
| 3C02R-A016150E | 1 Tonne | 150 | 6 |
| 3C02R-AH21150E | 2 Tonnes | 150 | 6 |
| 3C02R-AH21100E | 2 Tonnes | 100 | 12 |
| 3C02R-AH21125E | 2 Tonnes | 125 | 9 |
| 3C02R-AH21200E | 2 Tonnes | 200 | 6 |
| 3C04R-A02675E | 2 Tonnes | 75 | 24 |
| 3C04R-A026100E | 2 Tonnes | 100 | 12 |
| 3C04R-A026150E | 2 Tonnes | 150 | 6 |
| 3C04R-A041100E | 2 Tonnes | 100 | 12 |
| 3C04R-A041150E | 2 Tonnes | 150 | 6 |
*Add Voltage & Connector Suffix While Ordering
Compact ‘C’ Frame Press – 4, 8 & 15 Tonnes
| Model No. | Tonnage | Total Travel | Power Stroke Travel |
|---|---|---|---|
| 3C04R-A04475E | 4 Tonnes | 75 | 12 |
| 3C04R-A041100E | 4 Tonnes | 100 | 12 |
| 3C04R-A041150E | 4 Tonnes | 150 | 6 |
| 3C08R-A08150E | 8 Tonnes | 150 | 6 |
| 3C08R-A08100E | 8 Tonnes | 100 | 12 |
| 3C08R-A08475E | 8 Tonnes | 75 | 24 |
| 3C08R-A08125E | 8 Tonnes | 125 | 9 |
| 3C08R-A08200E | 8 Tonnes | 200 | 6 |
| 3C15R-N151100E | 15 Tonnes | 100 | 12 |
| 3C15R-N151150E | 15 Tonnes | 150 | 6 |
| 3C15R-N15475E | 15 Tonnes | 75 | 24 |
| 3C15R-N15125E | 15 Tonnes | 125 | 9 |
| 3C15R-N15200E | 15 Tonnes | 200 | 6 |
| 3C15R-N154150E | 15 Tonnes | 150 | 12 |
*Add Voltage & Connector Suffix While Ordering
