Series A – Hydro Pneumatic Pumps (upto 2000 bar )
Series A – Hydro Pneumatic Pumps (upto 2000 bar ) Pumps

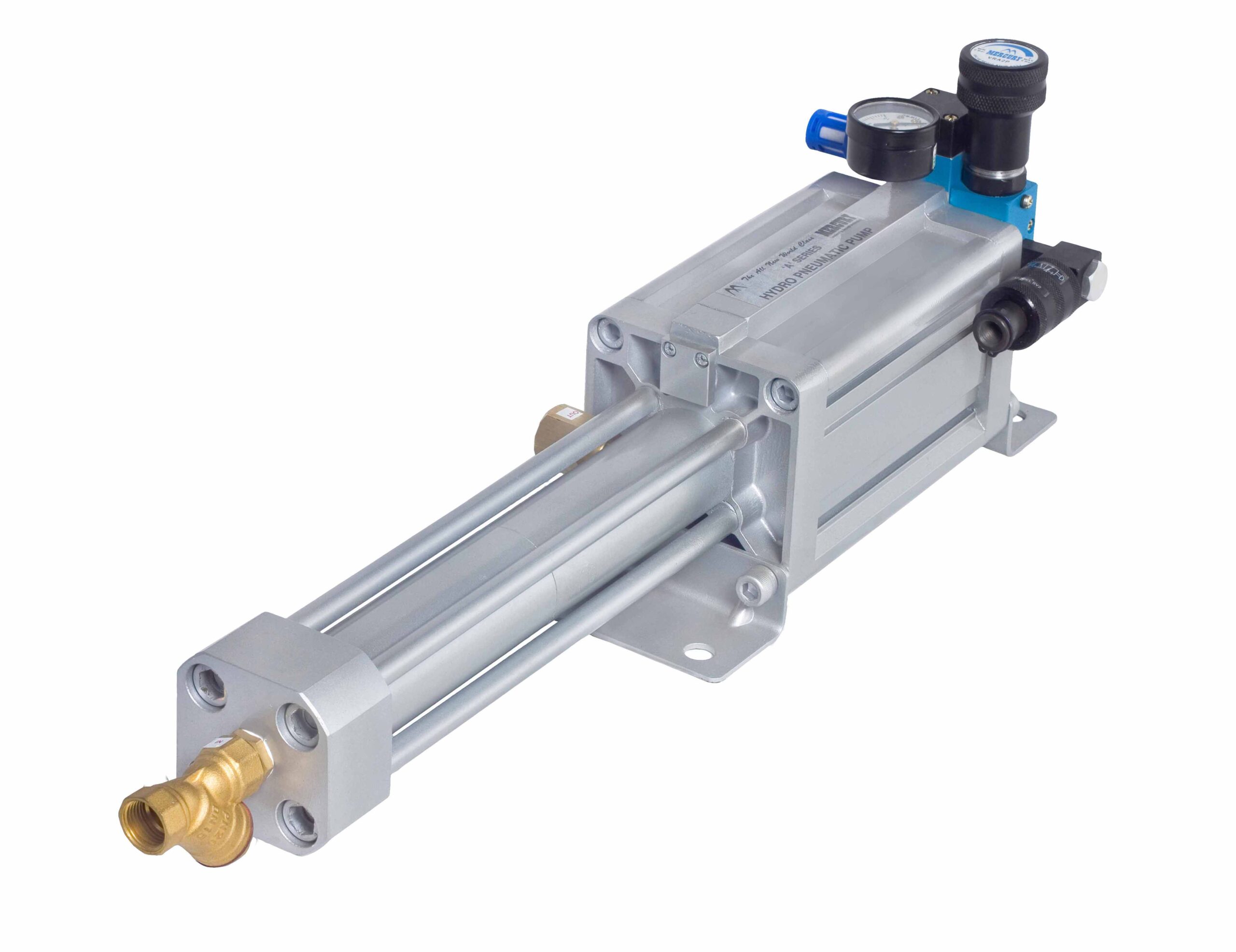

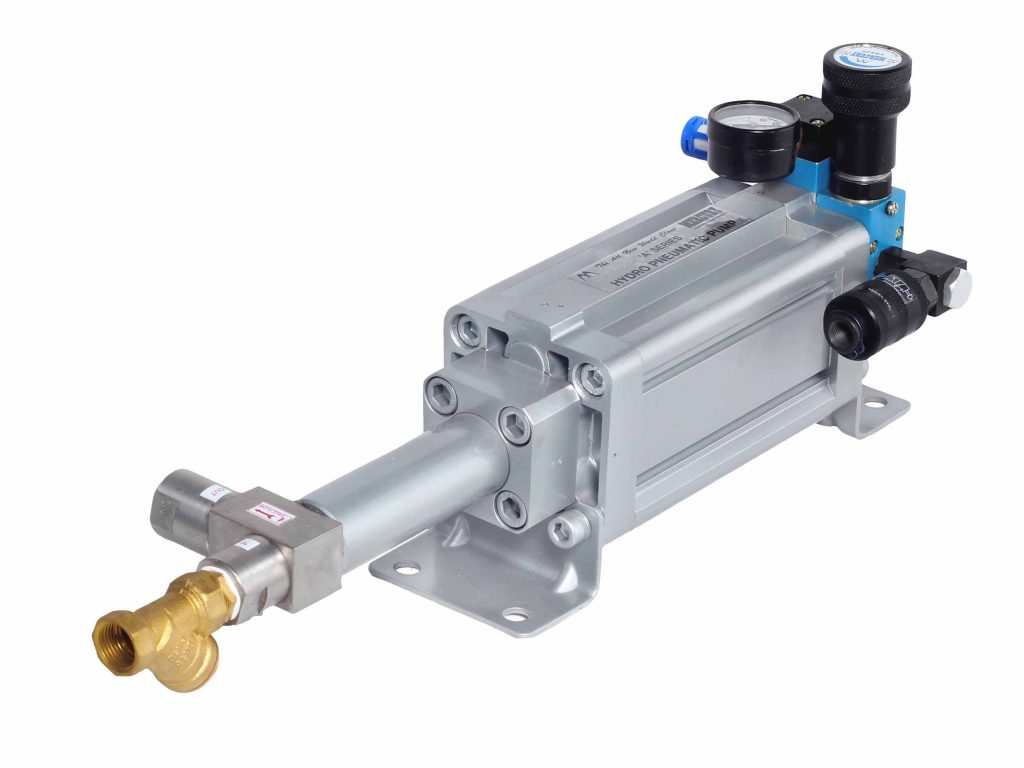

Mercury Pneumatics’ Series A Hydro-Pneumatic Pumps are high-pressure, air-driven pumps designed to generate hydraulic pressures of up to 2000 bar using a compressed air supply of as little as 5 bar. These pumps provide an efficient and economical alternative to conventional hydraulic pumping systems such as centrifugal, vane, piston, plunger, and manually operated pumps.
Operating on the principle of air-to-hydraulic pressure intensification, the Series A pumps deliver reliable high-pressure output without the need for electric motors, making them ideal for applications requiring safe, portable, and maintenance-friendly hydraulic power. Their compact and lightweight construction allows easy integration into industrial systems, while their robust design ensures dependable performance in demanding environments.
Suitable for pressure testing, clamping, pressing, bolt tensioning, hydraulic tool operation, and other high-pressure applications, Mercury Series A Hydro-Pneumatic Pumps provide exceptional efficiency, fast cycling speeds, and long service life with minimal maintenance requirements.
Key Features
- Generates hydraulic pressures up to 2000 bar
- Economical alternative to conventional hydraulic pumps
- Compact, lightweight, and portable design
- No electrical power required
- Fast operation and high efficiency
- Low maintenance and long service life
- Safe operation in hazardous and remote locations
- Ideal for pressure testing, clamping, pressing, and hydraulic power applications
Mercury Series A Hydro-Pneumatic Pumps combine the simplicity of pneumatic operation with the power of high-pressure hydraulics, delivering a cost-effective solution for a wide range of industrial applications.
| Model No. | Ratio | Output Pressure at 5kg/cm² |
NRV Model |
|---|---|---|---|
| A80-10 | 64 | 320 | HP2 |
| A80-14 | 32 | 160 | LP3 |
| A80-16 | 25 | 125 | LP3 |
| A80-20 | 16 | 80 | LP3 |
| A80-28 | 8 | 40 | LP3 |
| A80-32 | 6.25 | 31 | LP3 |
| A100-10 | 100 | 500 | HP2 |
| A100-14 | 51 | 255 | LP3 |
| A100-16 | 39 | 195 | LP3 |
| A100-20 | 25 | 125 | LP3 |
| A100-28 | 12.75 | 64 | LP3 |
| A100-32 | 9.75 | 49 | LP3 |
| A100-40 | 6.25 | 31 | HF2 |
| A100-56 | 3 | 15 | HF2 |
| A160-14 | 130 | 650 | HP2 |
| A160-16 | 100 | 500 | HP2 |
| A160-20 | 64 | 320 | HP2 |
| A160-28 | 32 | 160 | LP3 |
| A160-32 | 25 | 125 | LP3 |
| A160-40 | 16 | 80 | HF2 |
| A160-56 | 8 | 40 | HF2 |
| A160-80 | 4 | 20 | HF2 |
| A160-20-2 | 128 | 640 | HP2 |
| A160-14-2 | 260 | 1300 | HP2 |
| A100-5 | 400 | 2000 | HP3 |
