T series – Round barrel Cylinders
T series – Round barrel Cylinders

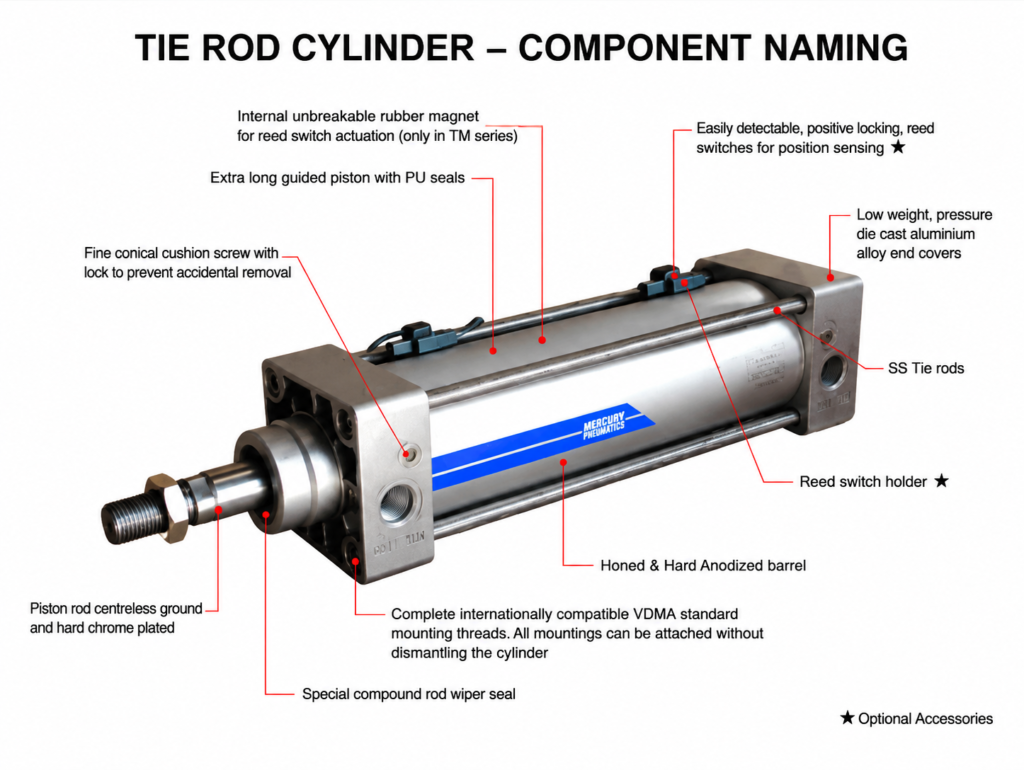

“Mercury” was the first Indian manufacturer to launch VDMA/ISO type Pneumatic cylinders with a built in magnetic Piston. Today, after various technological advancements, our ISO series cylinders are the choice of many OEM’s . The special seal designs, low weight extrusions and inhouse honing capabilities ensures a quality product in a very short lead time. Due to inhouse manufacturing control, Mercury ISO cylinders are available in a variety of lengths ranging from 20mm to as long as 2000mm .
“Mercury” Pneumatic cylinders are categorically divided into 2 series ie “T” Series for round barrel cylinders and “TM” series for Round barrel cylinders with a magnetic piston . Both series have cylinders ranging from 32mm to 100mm bore
* Double ended cylinders and Stroke adjustment cylinders are available against request
Datasheet 3 MB
Catalogue 1 MB
Enquire Now
| MODEL No. | PISTON DIA (mm) | A | ØB | ØC | D P.C.D. | EE B.S.P. | F | G | GA | H | J | JJ | KK | L | LL | M | N | O | V | W | ZB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T32 | 32 | 22 | 30 | 12 | 46 | G1/8″ | 32.5 | M6 | 16 | 27.5 | 12.5 | 5.5 | M10 x 1.25 | 7 | 6 | 4 | 69 | 10 | 19 | 29 | 123 |
| T40 | 40 | 24 | 35 | 16 | 53.7 | G1/4″ | 38 | M6 | 15 | 32 | 16 | 6 | M12 x 1.25 | 7.5 | 8.5 | 4 | 73 | 13 | 21 | 33 | 138 |
| T50 | 50 | 32 | 40 | 20 | 65.8 | G1/4″ | 46.5 | M8 | 15 | 31 | 15 | 7.5 | M16 x 1.5 | 9.5 | 8.5 | 4 | 76 | 17 | 39 | 27 | 139 |
| T63 | 63 | 32 | 45 | 25 | 80 | G3/8″ | 56.5 | M8 | 14 | 33 | 16.5 | 7.5 | M16 x 1.5 | 11.5 | 4 | 88 | 17 | 27 | 40 | 161 | |
| T80 | 80 | 40 | 45 | 25 | 101.8 | G3/8″ | 72 | M10 | 16 | 35 | 8.5 | 20 x 1.5 | 7.5 | 13.5 | 4 | 96 | 22 | 33 | 48 | 176 | |
| T100 | 100 | 40 | 55 | 25 | 126 | G1/2″ | 89 | M10 | 16 | 37 | 18 | 9.5 | M20 x 1.5 | 8.5 | 13.5 | 4 | 102 | 22 | 36 | 53 | 191 |
