Series N – Hydro Pneumatic Cylinder
Series N – Hydro Pneumatic Cylinder
‘N’ series Hydro-Pneumatic Cylinders are independent power units that can be purchased separately and further integrated in to larger systems. They are available in tonnages starting from 8 tonne and going all the way up to 45 tonnes. The standard travel lengths provided are 50 mm, 75 mm, 100 mm & 150 mm with power stroke lengths of 6 mm, 12 mm or 24 mm . Below are the list of models with details of their configurations.

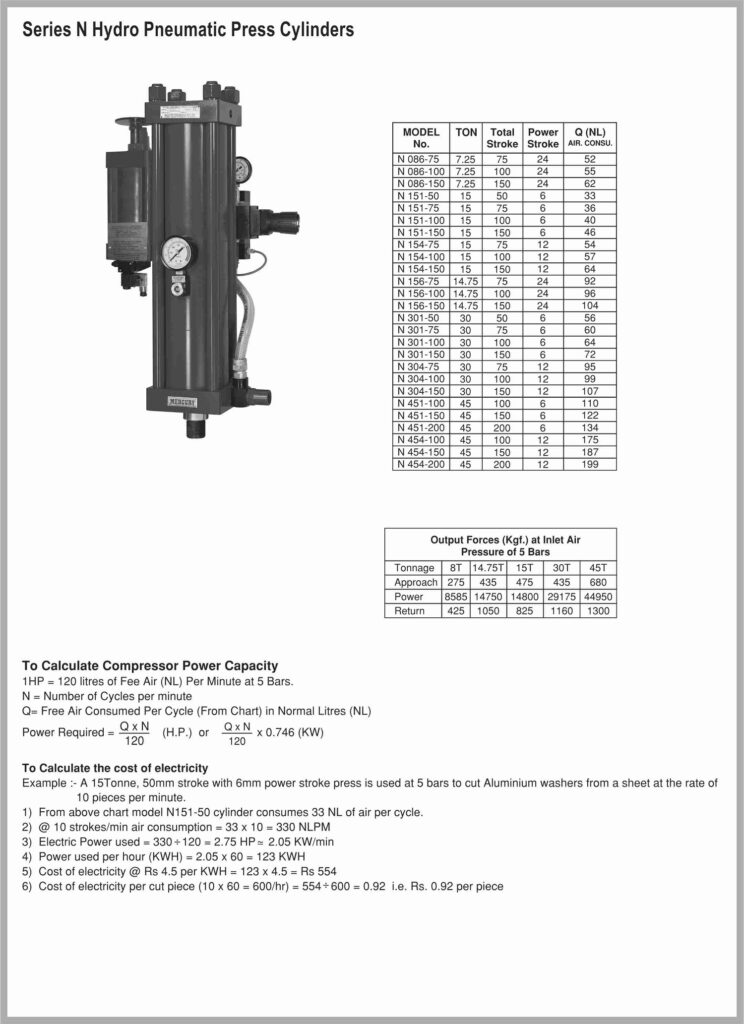

Series N Hydro Pneumatic Press Cylinders
| MODEL No. | TON | Total Stroke | Power Stroke | Q (NL) AIR CONSUMP. |
|---|---|---|---|---|
| N 086-75 | 7.25 | 75 | 24 | 52 |
| N 086-100 | 7.25 | 100 | 24 | 55 |
| N 086-150 | 7.25 | 150 | 24 | 62 |
| N 151-50 | 15 | 50 | 6 | 33 |
| N 151-75 | 15 | 75 | 6 | 38 |
| N 151-100 | 15 | 100 | 6 | 42 |
| N 151-150 | 15 | 150 | 6 | 46 |
| N 154-75 | 15 | 75 | 12 | 64 |
| N 154-100 | 15 | 100 | 12 | 72 |
| N 156-75 | 14.75 | 75 | 24 | 92 |
| N 156-100 | 14.75 | 100 | 24 | 96 |
| N 156-150 | 14.75 | 150 | 24 | 104 |
| N 301-50 | 30 | 50 | 6 | 56 |
| N 301-75 | 30 | 75 | 6 | 60 |
| N 301-100 | 30 | 100 | 6 | 64 |
| N 301-150 | 30 | 150 | 6 | 72 |
| N 304-75 | 30 | 75 | 12 | 90 |
| N 304-100 | 30 | 100 | 12 | 99 |
| N 304-150 | 30 | 150 | 12 | 112 |
| N 451-100 | 45 | 100 | 6 | 110 |
| N 451-150 | 45 | 150 | 6 | 122 |
| N 451-200 | 45 | 200 | 6 | 134 |
| N 454-150 | 45 | 150 | 12 | 187 |
| N 454-200 | 45 | 200 | 12 | 199 |
| MODEL NO. | DESCRIPTION | ORIFICE mm | PORT BSP | THRDS BSP | WEIGHT (Kg.) | SEAL KIT NO. |
|---|---|---|---|---|---|---|
| RS04 | 1/2” BSP ROTORSEAL COUPLING | Ø19.00 | 3/4″ | 1/2″ | 0.530 | SKRS04 |
| RS05 | 3/4” BSP ROTORSEAL COUPLING | Ø19.00 | 3/4″ | 3/4″ | 0.540 | SKRS05 |
| RS06 | 1” BSP ROTORSEAL COUPLING | Ø25.00 | 1″ | 1″ | 0.870 | SKRS06 |
| Tonnage | 8T | 14.75T | 15T | 30T | 45T |
|---|---|---|---|---|---|
| Approach | 275 | 435 | 475 | 435 | 680 |
| Power | 8585 | 14750 | 14800 | 29175 | 44950 |
| Return | 425 | 1050 | 825 | 1160 | 1300 |
To Calculate Compressor Power Capacity
1 HP = 120 litres of Free Air (NL) Per Minute at 5 Bars.
N = Number of Cycles per minute
Q = Free Air Consumed Per Cycle (From Chart) in Normal Litres (NL)
Power Required
Power Required = Q × N / 120 (H.P.) or (Q × N / 120) × 0.746 (KW)
To Calculate the Cost of Electricity
Example :- A 15 Tonne, 50 mm stroke with 6 mm power stroke press is used at 5 bars to cut Aluminium washers from a sheet at the rate of 10 pieces per minute.
- From above chart model N151-50 cylinder consumes 33 NL of air per cycle.
- @ 10 strokes/min air consumption = 33 × 10 = 330 NLPM
- Electric Power used = 330 ÷ 120 = 2.75 HP ≈ 2.05 KW/min
- Power used per hour (KWH) = 2.05 × 60 = 123 KWH
- Cost of electricity @ Rs 4.5 per KWH = 123 × 4.5 = Rs 554
- Cost of electricity per cut piece (10 × 60 = 600/hr) = 554 ÷ 600 = 0.92 i.e. Rs. 0.92 per piece
