High-Pressure FRL
High-Pressure FRL

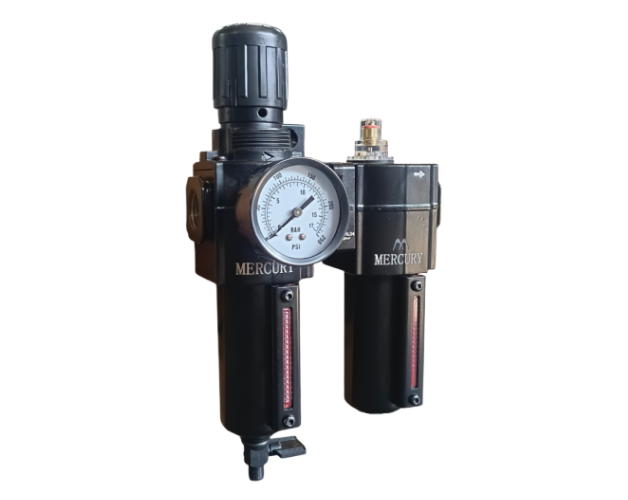

Mercury High Pressure FRL is engineered for reliable high-pressure pneumatic applications, offering working pressure up to 17 bar. Its robust metal body, compact modular design, accurate pressure control, manual drain, and push-to-lock regulator knob ensure efficient and dependable air management.
Salient Features:
-
Working pressure up to 17 bar
-
Robust metal body
-
Modular & Compact construction
-
Accurate pressure control
-
Manual Drain
-
‘Push to Lock’ regulator knob

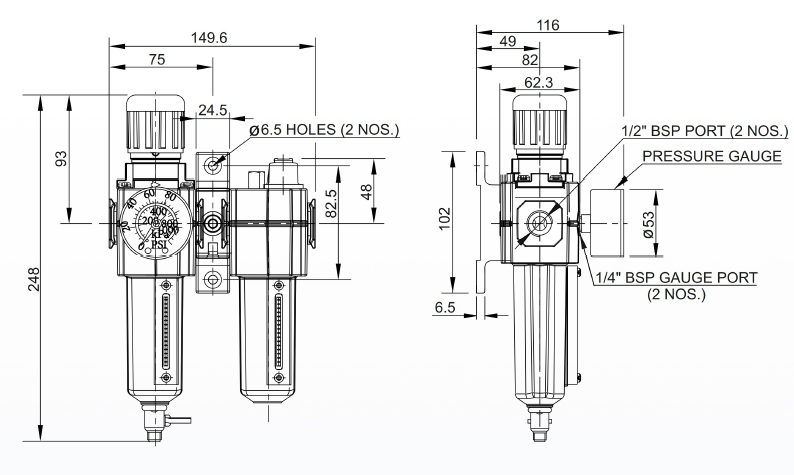

FILTER REGULATOR + LUBRICATOR
| MODEL: HFRL 04 | |
|---|---|
| Port | 1/2” BSP |
| Pressure Range | 0.5 ~ 17 kgf/sq.cm |
| Temperature | -5 to 80° C |
| Filtering Density | 40 µm |
| Fluid | Air |
| Max. Flow Rate | 1700 lit/min. (LPM) |
| Recommended Oil | ISO-VG32 |
| Pressure Gauge Port | 1/4” BSP |
| Bowl Material | Aluminium |
| Weight | 1.60 kg. |

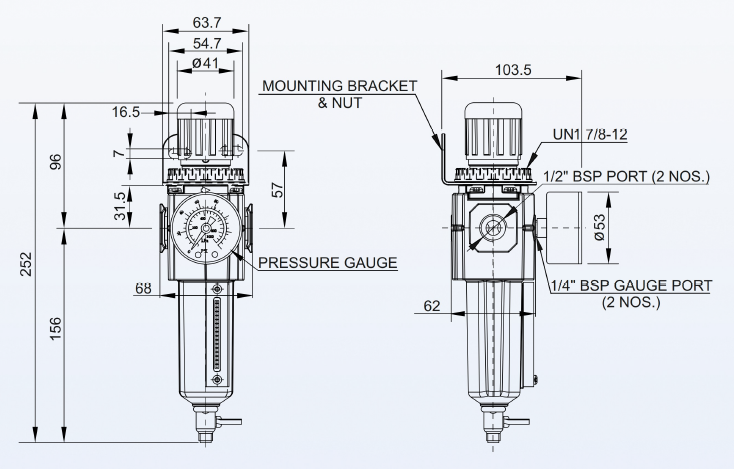

FILTER REGULATOR
| MODEL: HFR 04 | |
|---|---|
| Port | 1/2” BSP |
| Pressure Range | 0.5 ~ 17 kgf/sq.cm |
| Temperature | -5 to 80°C |
| Filtering Density | 40 µm |
| Fluid | Air |
| Max. Flow Rate | 3228 lit/min. (LPM) |
| Pressure Gauge Port | 1/4” BSP |
| Bowl Material | Aluminium |
| Weight | 0.90 kg. |

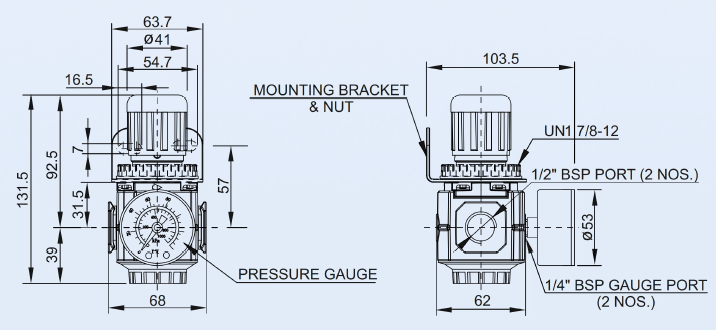

REGULATOR
| MODEL: HF 04 | |
|---|---|
| Port | 1/2” BSP |
| Pressure Range | 0.5 ~ 17 kgf/sq.cm |
| Temperature | -5 to 80°C |
| Fluid | Air |
| Pressure Gauge Port | 1/4” BSP |
| Max. Flow Rate | 4078 lit/min.(LPM) |
| Weight | 0.70 kg. |
