NS Series – Static Seal Spool Valves
NS Series – Static Seal Spool Valves
NS series spool type solenoid valves are of a more robust design as compared to the compact MS series valves. Their design consists of a proprietary “T-Ring” design which gives a higher life due to flexibility of the sealing lip as well as its static positioning reduces wear and year on the rubber components.
The NS series valves are designed and sold for applications requiring continuous operations and lower maintenance .
They are available in G1/8” , G1/4” and G1/2” BSP port sizes in 3WAY and 4WAY configurations.
Gang manifold assemblies are available separately
The detailed models are listed below.
| Model No. | Description | Size (BSP) | Seal Kit No. |
|---|---|---|---|
| NS311 | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve | 1/8″ | SKNS311 |
| NS312 | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve | 1/4″ | SKNS312 |
| NS314 | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve | 1/2″ | SKNS314 |
| NS311E | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve with External Pilot | 1/8″ | SKNS311E |
| NS312E | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve with External Pilot | 1/4″ | SKNS312E |
| NS314E | 3/2 (3 Way) Normally Closed Solenoid – Air Spring Valve with External Pilot | 1/2″ | SKNS314E |
| NS411 | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve | 1/8″ | SKNS411 |
| NS412 | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve | 1/4″ | SKNS412 |
| NS414 | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve | 1/2″ | SKNS414 |
| NS411E | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve with External Pilot | 1/8″ | SKNS411E |
| NS412E | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve with External Pilot | 1/4″ | SKNS412E |
| NS414E | 3/2 (3 Way) Normally Open Solenoid – Air Spring Valve with External Pilot | 1/2″ | SKNS414E |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Size (BSP) | Seal Kit No. |
|---|---|---|---|
| NS321 | 3/2 (3 Way) Solenoid-Solenoid Valve | 1/8″ | SKNS321 |

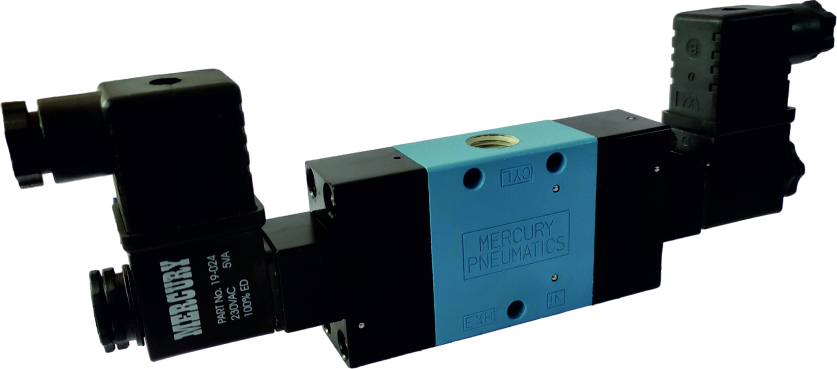

| NS322 | 3/2 (3 Way) Solenoid-Solenoid Valve | 1/4″ | SKNS322 |
| NS324 | 3/2 (3 Way) Solenoid-Solenoid Valve | 1/2″ | SKNS324 |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Size (BSP) | Seal Kit No. |
|---|---|---|---|

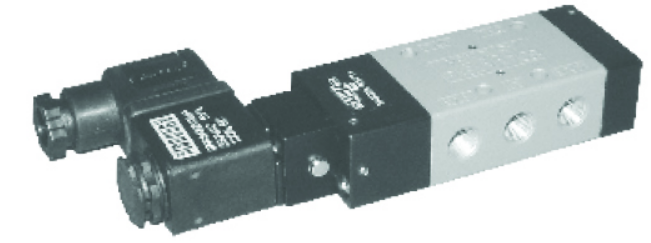

| NS611 | 5/2 (4 Way) Solenoid – Air Spring Valve | 1/8″ | SKNS611 |
| NS612 | 5/2 (4 Way) Solenoid – Air Spring Valve | 1/4″ | SKNS612 |
| NS614 | 5/2 (4 Way) Solenoid – Air Spring Valve | 1/2″ | SKNS614 |
| NS615 | 5/2 (4 Way) Solenoid – Air Spring Valve | 3/4″ | SKNS615 |
| NS611E | 5/2 (4 Way) Solenoid – Air Spring Valve with External Pilot | 1/8″ | SKNS611E |
| NS612E | 5/2 (4 Way) Solenoid – Air Spring Valve with External Pilot | 1/4″ | SKNS612E |
| NS614E | 5/2 (4 Way) Solenoid – Air Spring Valve with External Pilot | 1/2″ | SKNS614E |
| NS615E | 5/2 (4 Way) Solenoid – Air Spring Valve with External Pilot | 3/4″ | SKNS615E |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Size (BSP) | Seal Kit No. |
|---|---|---|---|
| NS621 | 5/2 (4 Way 2 Position) Solenoid – Solenoid Valve | 1/8″ | SKNS621 |
| NS622 | 5/2 (4 Way 2 Position) Solenoid – Solenoid Valve | 1/4″ | SKNS622 |
| NS624 | 5/2 (4 Way 2 Position) Solenoid – Solenoid Valve | 1/2″ | SKNS624 |
| NS625 | 5/3 (4 Way 3 Position) PHN Solenoid – Solenoid Valve | 1/8″ | SKNS625 |
| NS721 | 5/3 (4 Way 3 Position) PHN Solenoid – Solenoid Valve | 1/4″ | SKNS721 |
| NS724 | 5/3 (4 Way 3 Position) PHN Solenoid – Solenoid Valve | 1/2″ | SKNS724 |
| NS821 | 5/3 (4 Way 3 Position) PAN Solenoid – Solenoid Valve | 1/8″ | SKNS821 |
| NS822 | 5/3 (4 Way 3 Position) PAN Solenoid – Solenoid Valve | 1/4″ | SKNS822 |
| NS824 | 5/3 (4 Way 3 Position) PAN Solenoid – Solenoid Valve | 1/2″ | SKNS824 |
| NS921 | 5/3 (4 Way 3 Position) PRN Solenoid – Solenoid Valve | 1/8″ | SKNS921 |
| NS922 | 5/3 (4 Way 3 Position) PRN Solenoid – Solenoid Valve | 1/4″ | SKNS922 |
| NS924 | 5/3 (4 Way 3 Position) PRN Solenoid – Solenoid Valve | 1/2″ | SKNS924 |
*Add Voltage & Connector Suffix While Ordering

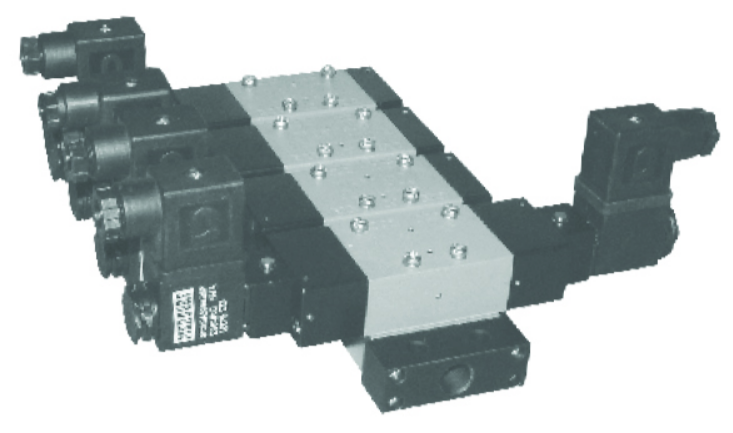

| Model No. | Description | Size (BSP) | Seal Kit No. |
|---|---|---|---|

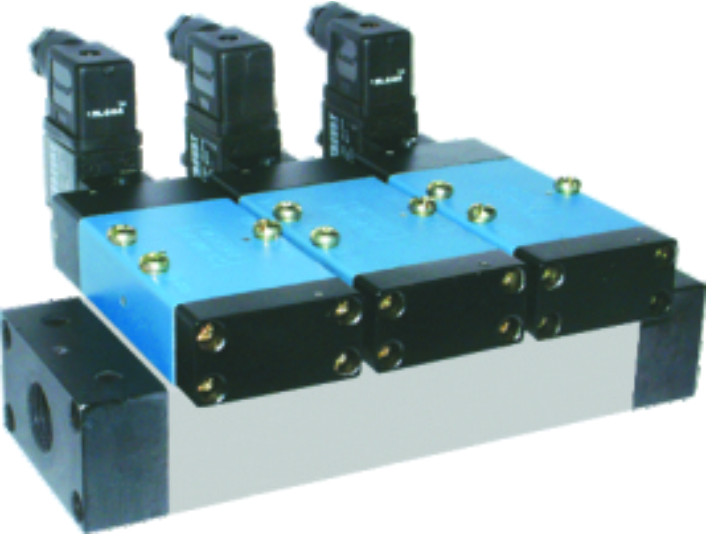

| NSG1C-2 | Gang Manifold Assembly for 2 Valves | 1/8″ | SKNSG1C-2 |
| NSG1C-3 | Gang Manifold Assembly for 3 Valves | 1/8″ | SKNSG1C-3 |
| NSG1C-4 | Gang Manifold Assembly for 4 Valves | 1/8″ | SKNSG1C-4 |
| NSG1C-6 | Gang Manifold Assembly for 6 Valves | 1/8″ | SKNSG1C-6 |
| NSG2C-2 | Gang Manifold Assembly for 2 Valves | 1/4″ | SKNSG2C-2 |
| NSG2C-3 | Gang Manifold Assembly for 3 Valves | 1/4″ | SKNSG2C-3 |
| NSG2C-4 | Gang Manifold Assembly for 4 Valves | 1/4″ | SKNSG2C-4 |
| NSG2C-6 | Gang Manifold Assembly for 6 Valves | 1/4″ | SKNSG2C-6 |
| NSG4C-2 | Gang Manifold Assembly for 2 Valves | 1/2″ | SKNSG4C-2 |
| NSG4C-3 | Gang Manifold Assembly for 3 Valves | 1/2″ | SKNSG4C-3 |
| NSG4C-4 | Gang Manifold Assembly for 4 Valves | 1/2″ | SKNSG4C-4 |
| NSG4C-6 | Gang Manifold Assembly for 6 Valves | 1/2″ | SKNSG4C-6 |
*Add Voltage & Connector Suffix While Ordering
