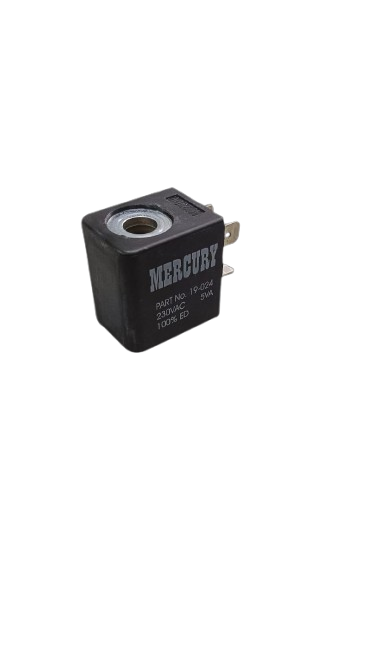

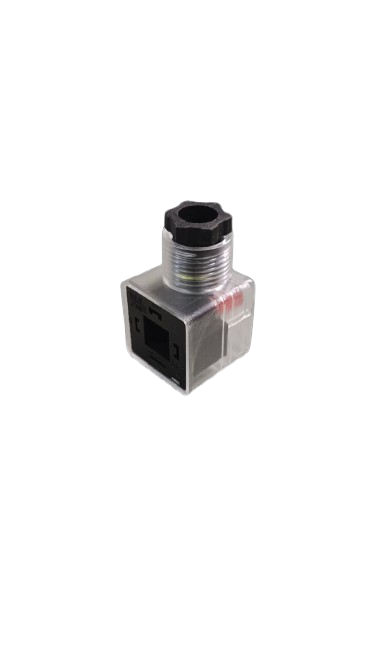

“ Mercury” offers a selection of solenoid coils and connectors ranging from 6VDC to 230VAC with Black or illuminated connectors. They come in various sizes i.e M17, M22 and M32 which can be used in conjunction with Mercury solenoid valves. The timer operated solenoid valves come with OFF delay , ON delay and CYCLIC functionalities
| Coil Voltage | Power | Duty Cycle | Protection | Connector |
|---|---|---|---|---|
| 12 & 24 VDC; 24, 48, 110 & 230 VAC / 50 Hz ±10% | DC – 3 W, AC – 5 VA Hold, 7.5 VA Pickup | Continuous | IP 65 (as per DIN 40 050) | Black (Illuminated on request) |
*Add Voltage & Connector Suffix While Ordering

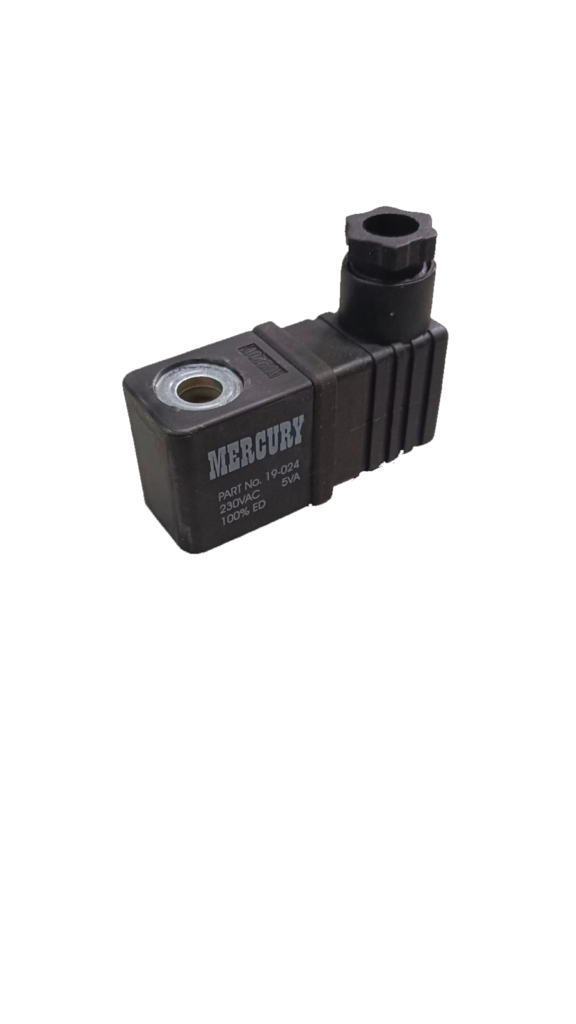

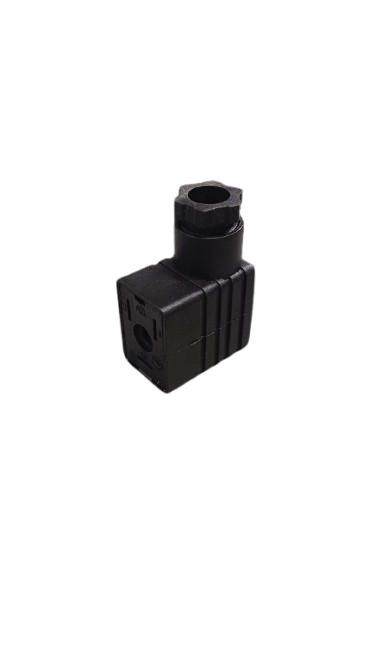

| Connector | 230VAC | 24VAC | 12VAC | 24VDC | 12VDC | 110VAC | 48VAC |
|---|---|---|---|---|---|---|---|
| BLACK | M22A | M22B | M22C | M22D | M22E | M22F | M22G |
| ILLUMINATED | M22L | M22M | M22N | M22P | M22Q | M22R | M22S |
*Add Voltage & Connector Suffix While Ordering
| Coil Voltage | Power | Duty Cycle | Protection | Connector |
|---|---|---|---|---|
| 6, 12 & 24 VDC; 12, 24, 42, 110, 230 & 440 VAC ±10% | DC – 7.5 W, AC – 9 VA Hold, 18 VA Pickup | Continuous | IP 65 (as per DIN 40 050) | Black (Illuminated on request) |
*Add Voltage & Connector Suffix While Ordering

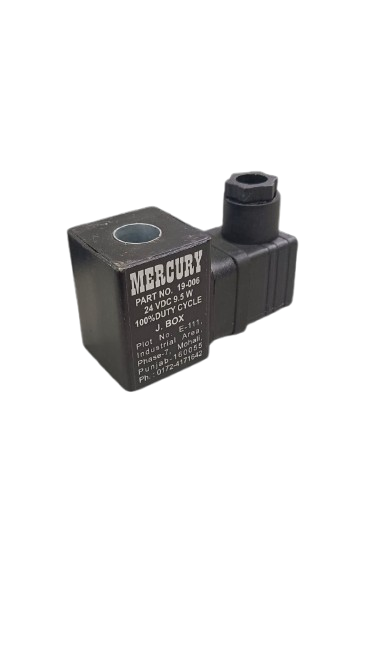

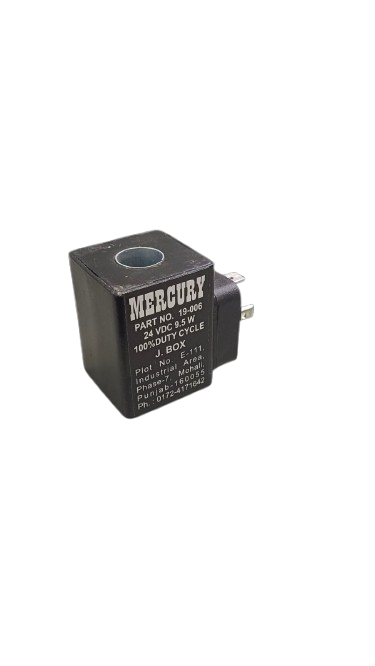

| Connector | 230VAC | 24VAC | 12VAC | 24VDC | 12VDC | 110VAC | 48VAC | 440VAC | 6VDC |
|---|---|---|---|---|---|---|---|---|---|
| BLACK | M32A | M32B | M32C | M32D | M32E | M32F | M32G | M32H | M32J |
| ILLUMINATED | M32L | M32M | M32N | M32P | M32Q | M32R | M32S | M32T | M32U |
| CABLE | M32WA | M32WB | M32WC | M32WD | M32WE | M32WF | M32WG | M32WH | M32WJ |
*Add Voltage & Connector Suffix While Ordering

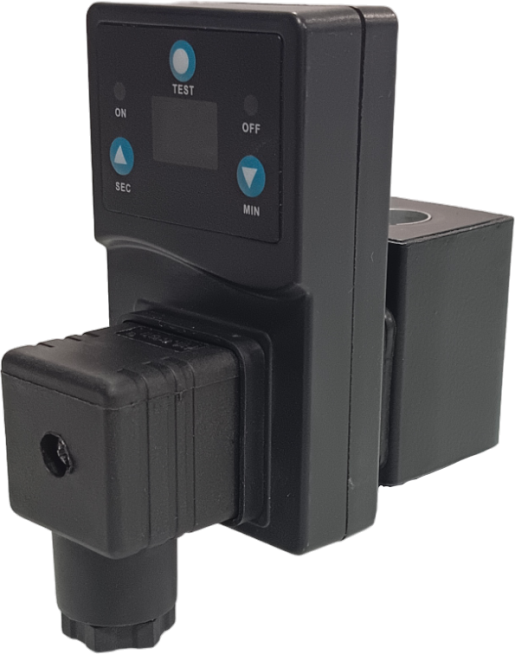

| MODEL No. | TIME RANGE | TYPE | VOLTAGE | FUNCTION |
|---|---|---|---|---|
| TON 22A | 0.3 to 5 sec | ON DELAY | 230 VAC | The solenoid is energised after the set time interval and remains energised till input signal is removed. |
| TON 22D | 0.3 to 5 sec | ON DELAY | 24 VDC | Same as above |
| TON 22B | 0.6 to 10 sec | ON DELAY | 230 VAC | Same as above |
| TON 22BD | 0.6 to 10 sec | ON DELAY | 24 VDC | Same as above |
| TON 32A | 0.3 to 5 sec | ON DELAY | 230 VAC | Same as above |
| TON 32AD | 0.3 to 5 sec | ON DELAY | 24 VDC | Same as above |
| TON 32B | 0.6 to 10 sec | ON DELAY | 230 VAC | Same as above |
| TON 32BD | 0.6 to 10 sec | ON DELAY | 24 VDC | Same as above |
| TOF 22B | 0.6 to 10 sec | OFF DELAY | 230 VAC | The solenoid is energised immediately and is de-energised after the set time interval. |
| TOF 22BD | 0.6 to 10 sec | OFF DELAY | 24 VDC | Same as above |
| TOF 32B | 0.6 to 10 sec | OFF DELAY | 230 VAC | Same as above |
| TOF 32BD | 0.6 to 10 sec | OFF DELAY | 24 VDC | Same as above |
| TC 22B | 0.6 to 10 sec | CYCLIC | 230 VAC | The solenoid is energised and de-energised continuously, as long as power is supplied. |
| TC 22BD | 0.6 to 10 sec | CYCLIC | 24 VDC | Same as above |
| TC 32B | 0.3 to 5 sec | ON DELAY | 230 VAC | For Hydro Pneumatic Presses 230 VAC |
