XA series – Hydro Pneumatic Systems For Pet Moulding Machines
XA series – Hydro Pneumatic Systems For Pet Moulding Machines

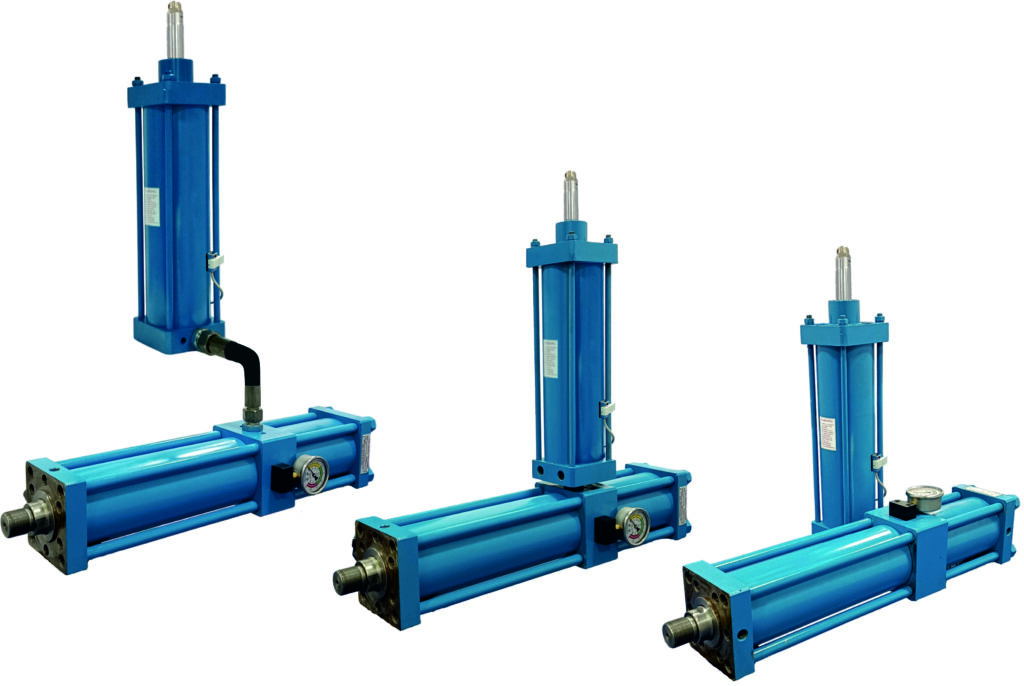

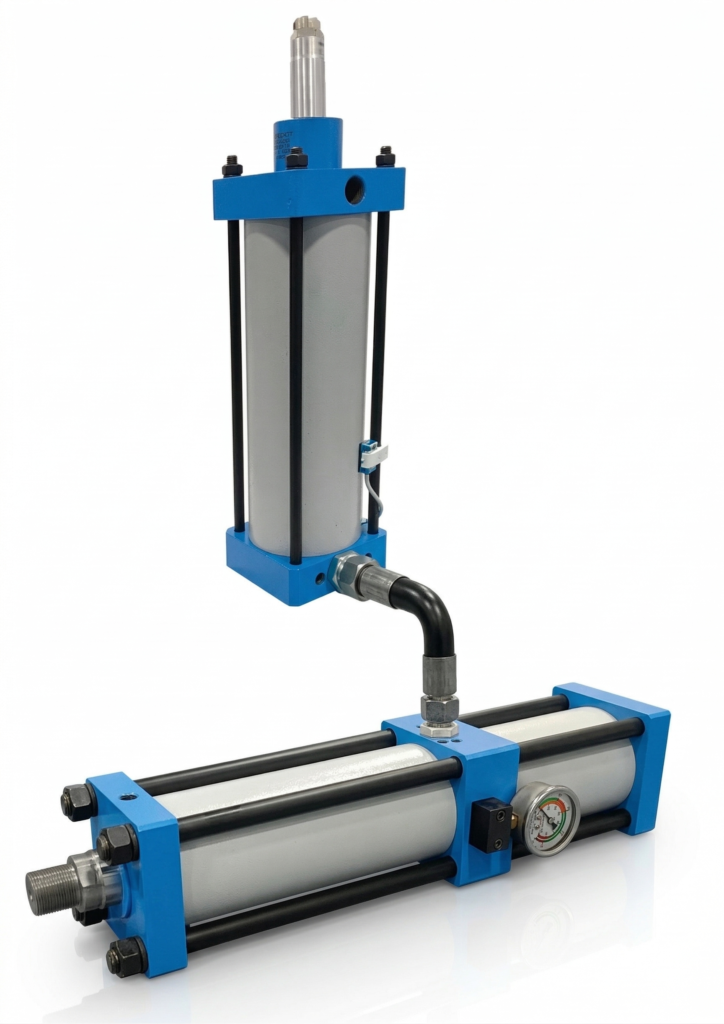

Mercury’s Series ‘XA” Series Hydro Pneumatic Clamping Systems use low cost pneumatic elements to achieve the large forces associated with pure hydraulic systems , with 50% saving in energy and 100% increase in speed over an equivalent hydraulic system.
The series ‘XA’ system has been developed for applications where the cylinder has to be mounted horizontally .
The system has 3 stages of operation:-
1. Initial Low force , large travel, Rapid Approach
2. High force , short travel ( typically 3mm) , power stroke
3. Low force, rapid retraction
the advantages of the new XA series are higher speeds, higher tonnage, longer life as well as an all new low oil level warning system which will reduce breakdowns and improve productivity

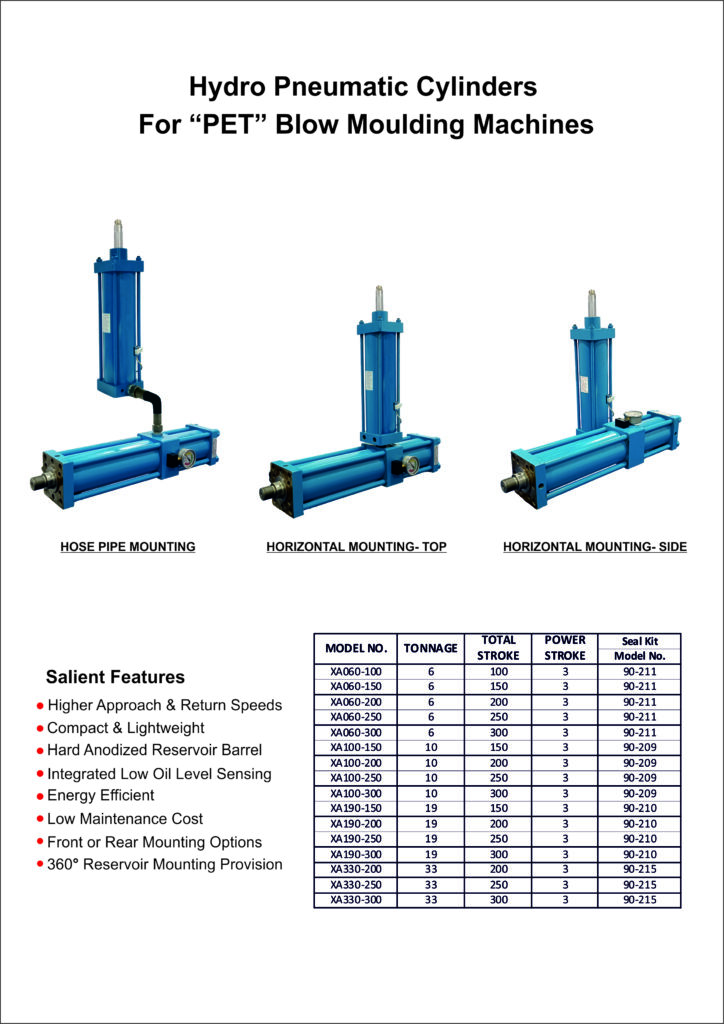

| MODEL NO. | TONNAGE | TOTAL STROKE | POWER STROKE | Seal Kit / Model No. |
|---|---|---|---|---|
| XA060-100 | 6 | 100 | 3 | 90-211 |
| XA060-150 | 6 | 150 | 3 | 90-211 |
| XA060-200 | 6 | 200 | 3 | 90-211 |
| XA060-250 | 6 | 250 | 3 | 90-211 |
| XA060-350 | 6 | 350 | 3 | 90-211 |
| XA100-150 | 10 | 150 | 3 | 90-209 |
| XA100-200 | 10 | 200 | 3 | 90-209 |
| XA100-250 | 10 | 250 | 3 | 90-209 |
| XA150-150 | 15 | 150 | 3 | 90-222 |
| XA150-200 | 15 | 200 | 3 | 90-222 |
| XA150-250 | 15 | 250 | 3 | 90-222 |
| XA150-350 | 15 | 350 | 3 | 90-222 |
| XA150-400 | 15 | 400 | 3 | 90-222 |
| XA330-200 | 33 | 200 | 3 | 90-215 |
| XA330-250 | 33 | 250 | 3 | 90-215 |
| XA330-300 | 33 | 300 | 3 | 90-215 |
Salient Features
- Higher Approach & Return Speeds
- Compact & Lightweight
- Hard Anodized Reservoir Barrel
- Integrated Low Oil Level Sensing
- Energy Efficient
- Low Maintenance Cost

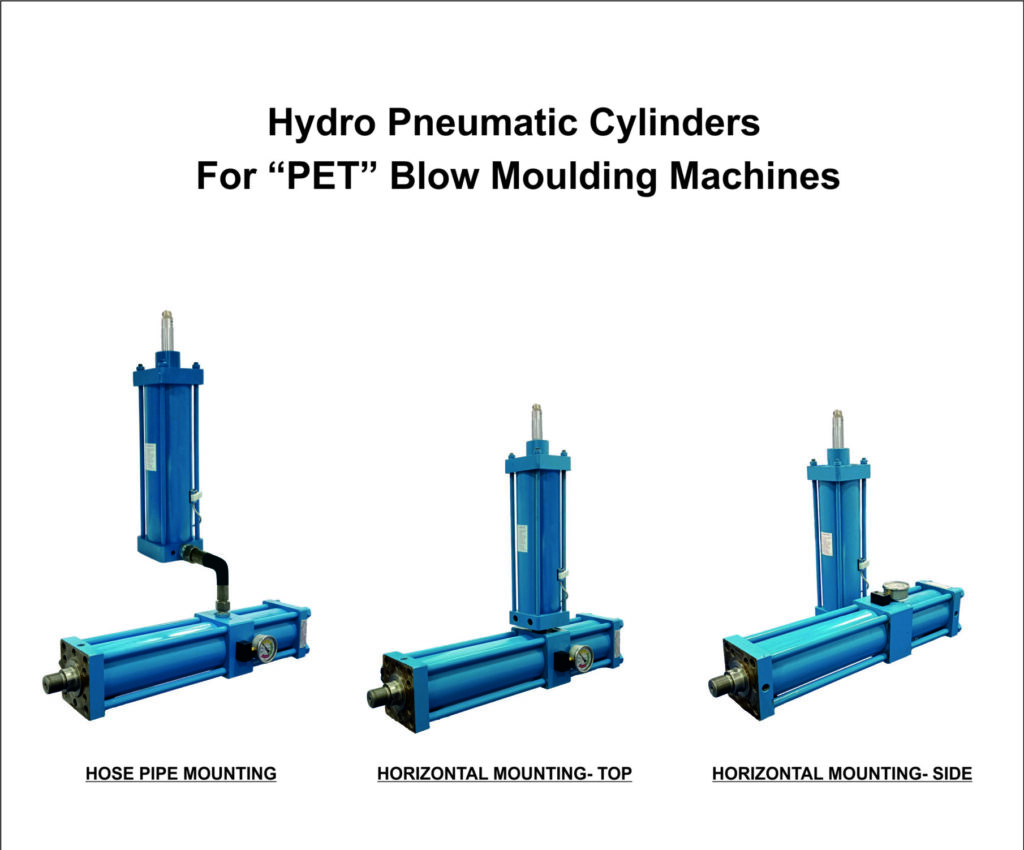

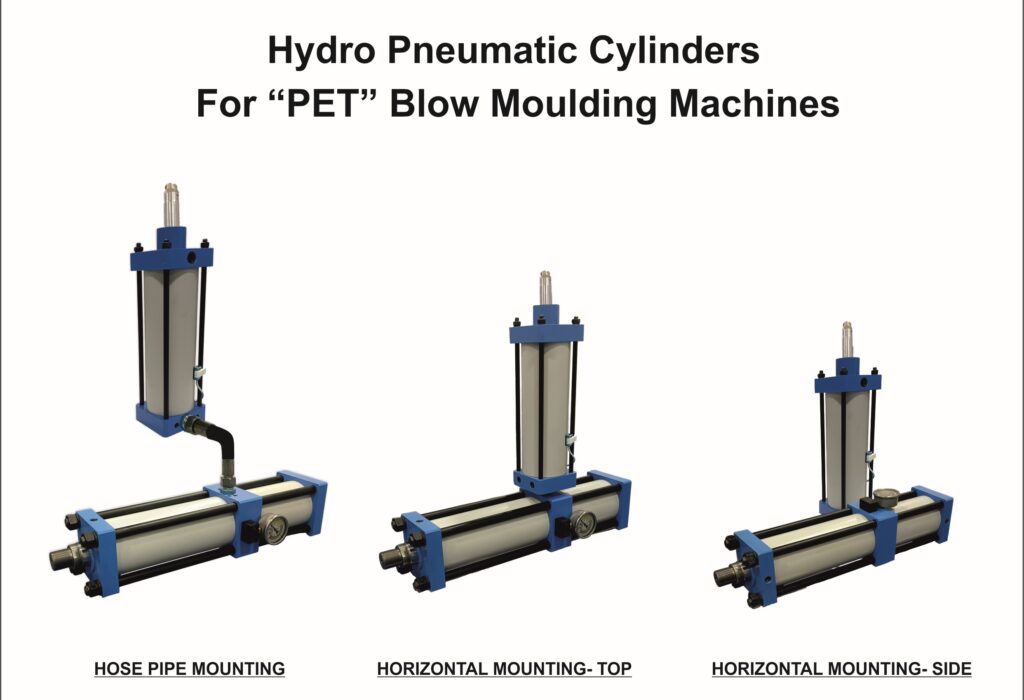

- Front or Rear Mounting Options
- 360° Reservoir Mounting Provision
