Special valves for PET moulding machines
Special valves for PET moulding machines
“ Mercury” is a pioneer in developing High pressure pneumatic valves for the PET Blow molding industry and is the preferred brand by the PET blow molding machine manufacturers. These valves are robust and have proven the test of time
| Model No. | Description | Port Size (BSP) | Seal Kit No. |
|---|---|---|---|
| NPC114EH | 2/2 High Pressure Solenoid Valve | 1/2″ | SKNPC114EH |
| NPC115EH | 2/2 High Pressure Solenoid Valve | 3/4″ | SKNPC115EH |
| NPC116EH | 2/2 High Pressure Solenoid Valve | 1″ | SKNPC116EH |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Port Size (BSP) | Seal Kit No. | Poppet Kit No. |
|---|---|---|---|---|

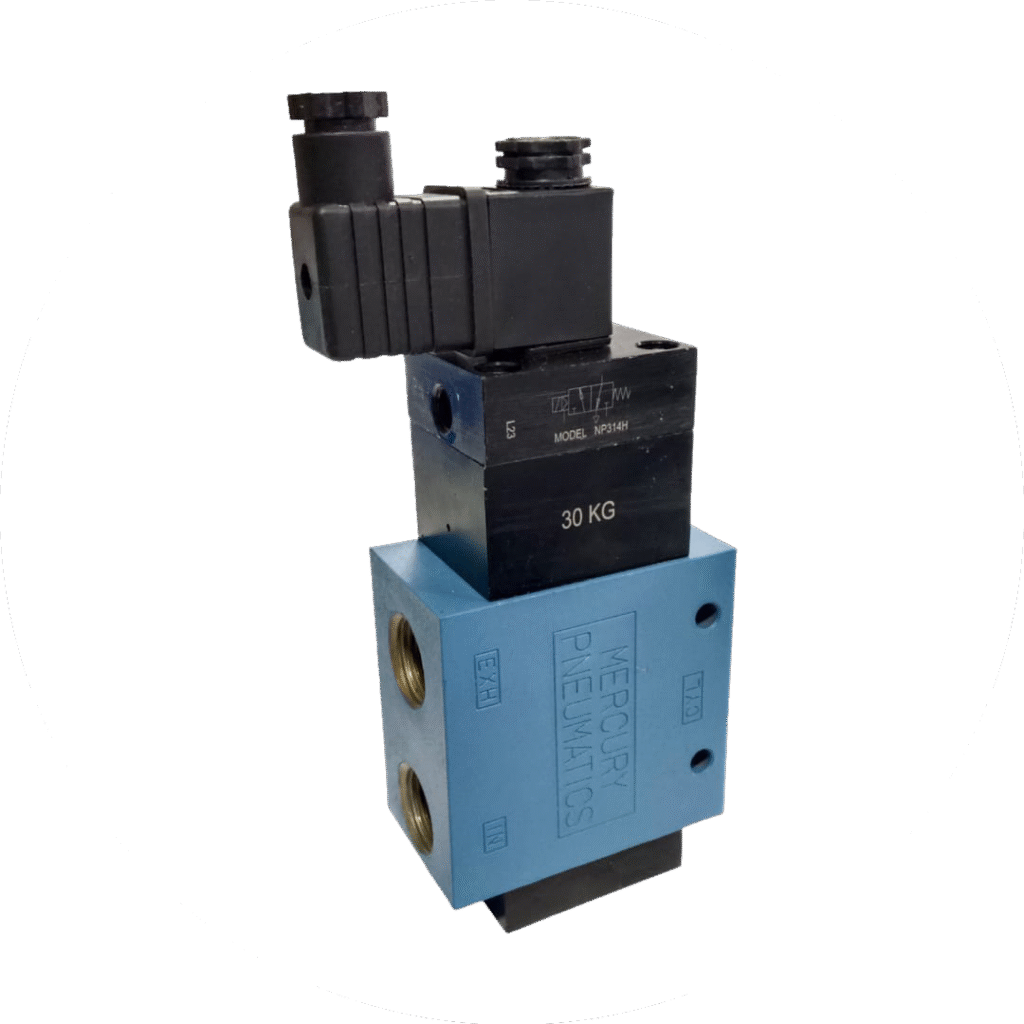

| NP314H | 3/2 (3 Way) High Pressure Blow Solenoid Valve | 1/2″ | SKNP314H | PNP314H |
| HP314H | 3/2 High Pressure Blow Solenoid Valve with Polymer Poppet | 1/2″ | SKHP314H | PHP314H |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Port Size (BSP) | Seal Kit No. | Poppet Kit No. |
|---|---|---|---|---|
| NP314D | 3/2 (3 Way) Dual Pressure Blow Solenoid Valve | 1/2″ | SKNP314D | PNP314D |

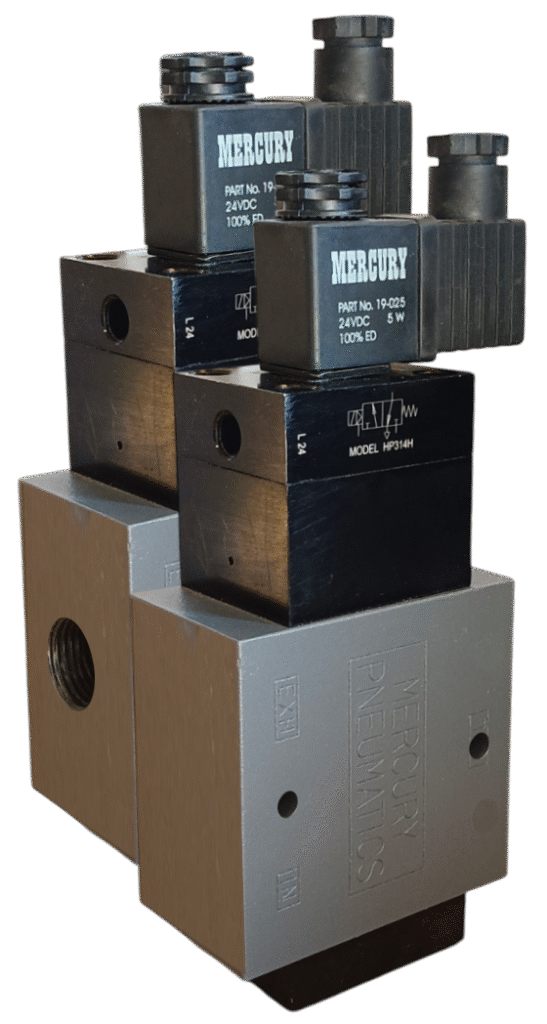

| HP314HD | 1/2″ BSP 3/2 High Pressure Blow Solenoid Valve with Polymer Poppet | 1/2″ | SKHP314HD | PHP314HD |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | L.P. | H.P. | CYL | EXH | Seal Kit No. |
|---|---|---|---|---|---|---|
| DP215-2 | Dual pressure Blow Valve for PET machines (Exhaust N.C.) | 1/2″ | 3/4″ | 3/4″ | 1 “ | SKDP215-2 |
| DP215-2R | Dual pressure Blow Valve for PET machines (Exhaust N.C.) with Recovery system | 1/2″ | 3/4″ | 3/4″ | 1 “ | SKDP215-2R |
| DP215-2RS | Dual pressure Blow Valve for PET machines (Exhaust N.C.) with recovery system and Silencer | 1/2″ | 3/4″ | 3/4″ | 1 “ | SKDP215-2RS |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description | Port Size (BSP) | Seal Kit No. |
|---|---|---|---|

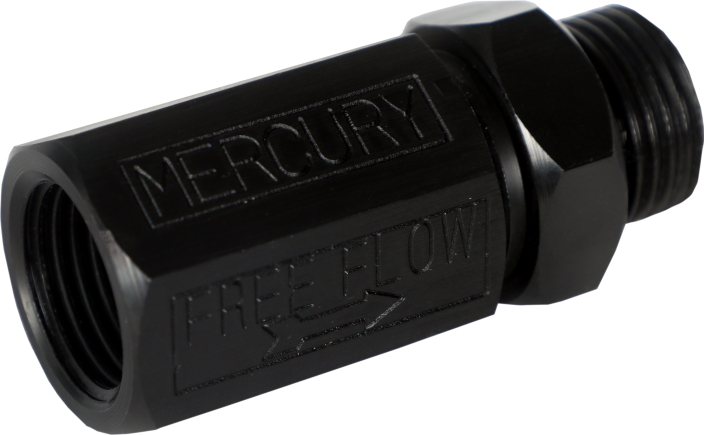

| NR4H | High Pressure Non Return Valve | 1/2″ | SKNR4H |
| NR5H | High Pressure Non Return Valve | 3/4″ | SKNR5H |
| NR6H | High Pressure Non Return Valve | 1″ | SKNR6H |
| Model No. | Description | Port Size (BSP) | Seal Kit No. |
|---|---|---|---|
| RH4 | High Pressure Regulator with Pressure Gauge (0-40 bar ) | 1/2″ | SKRH4 |

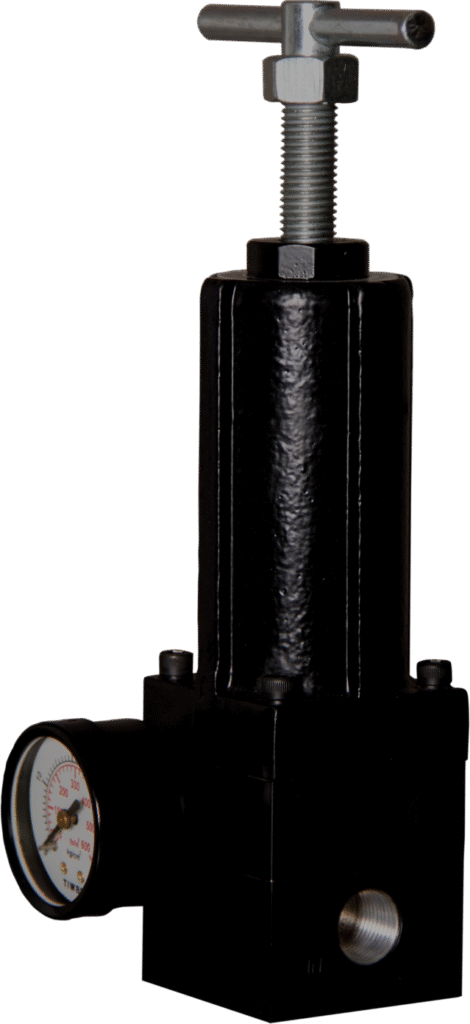

| RH4HP | High Pressure Regulator with Pressure Gauge (0-80 bar) | 1/2″ | SKRH4HP |
| RH6 | High Pressure Regulator with Pressure Gauge (0-40 bar) | 1″ | SKRH6 |
| Model No. | Description | Thread Size |
|---|---|---|
| SL25H | High Pressure Silencer | 3/4″ |

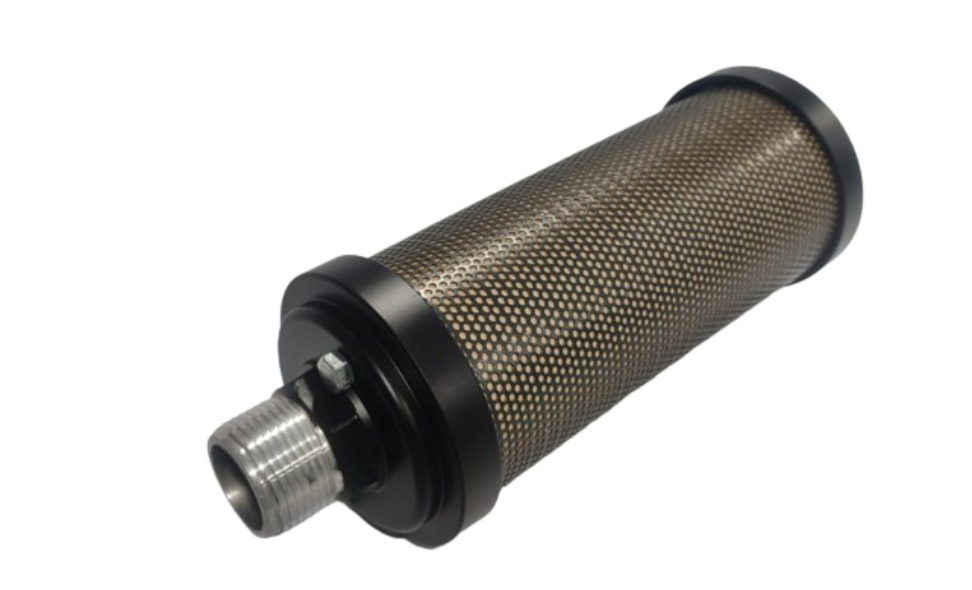

| SL26H | High Pressure Silencer | 1″ |
| SL27H | High Pressure Silencer | 1 1/4″ |
| SL28H | High Pressure Silencer | 1 1/2″ |
| Model No. | Description | Port Size (BSP) | Seal Kit No. |
|---|---|---|---|
| VRA2 | Valve Regulator Assembly | 1/4″ | SKVRA2 |
| VRA4 | Valve Regulator Assembly | 1/2″ | SKVRA4 |
