Series P
Series P – poppet valves from Mercury Pneumatics are compact, fast-acting directional control valves designed for high reliability and long life. Their poppet design ensures tight sealing, minimal leakage, and resistance to contamination, making them ideal for tough industrial environments.
Features:
Quick response with high flow
Rugged, compact design
Available in 2/2 and 3/2 (NO/NC) versions
- Available in 1/4″, 1/2″ ,3/4″ and 1″ BSP sizes
Perfect for clamping, positioning, and other high-speed automation tasks.

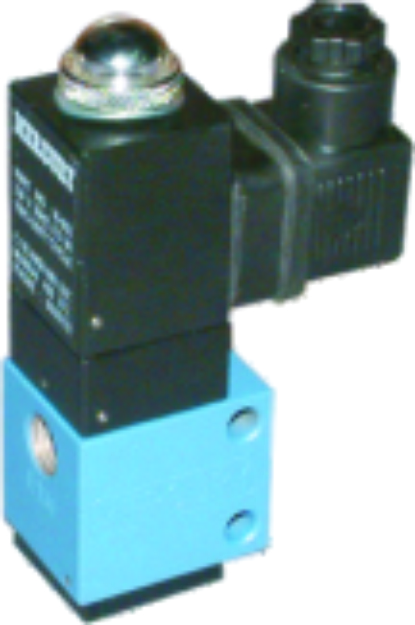

2/2 Normally Closed Poppet Valves
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| P112✽ |
2/2 (2 WAY) NORMALLY CLOSED | 1/4″ | SKP112 |
| P114✽ | 1/2″ | SKP114 | |
| P115✽ | 3/4″ | SKP115 | |
| P116✽ | 1″ | SKP116 |
*Add Voltage & Connector Suffix While Ordering
2/2 Normally Open Poppet Valves
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|
| P212✽ | POPPET TYPE SOLENOID VALVE |
1/4″ | SKP212 |
| P214✽ | 1/2″ | SKP214 | |
| P215✽ | 3/4″ | SKP215 | |
| P216✽ | 1″ | SKP216 |
*Add Voltage & Connector Suffix While Ordering
| MODEL No. | DESCRIPTION | SIZE (BSP) | SEAL KIT No. |
|---|---|---|---|

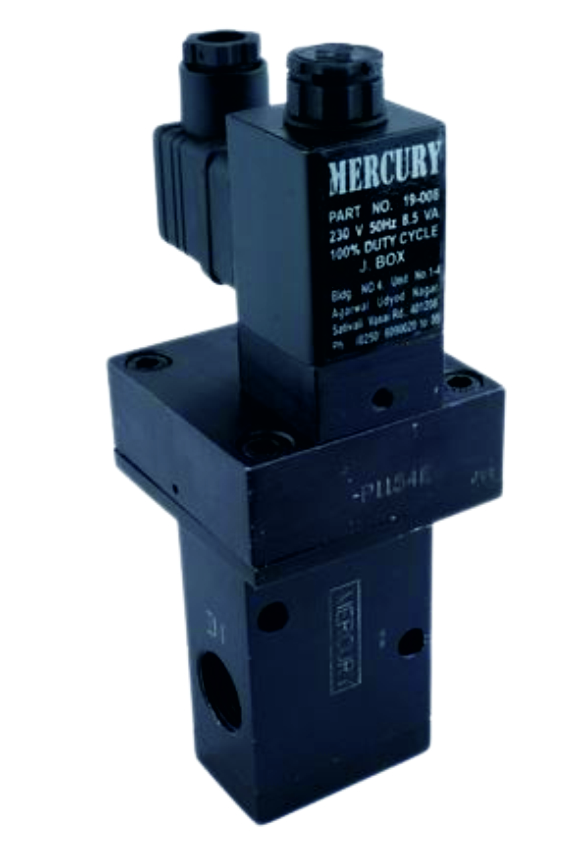

| P114AE✽ | 2/2 (2 WAY) NORMALLY CLOSED LOW EXTERNAL PILOT, POPPET TYPE SOLENOID VALVE | 1/2″ | SKP114 |
*Add Voltage & Connector Suffix While Ordering
