Series M – 1/2″ Units
Series M – 1/2″ Units
Below all the details of the various units available in 1/2″BSP part sizes. Kindly refer attached data sheet for all dimensional details and operating parameters.
| Model No. | Description |
|---|---|

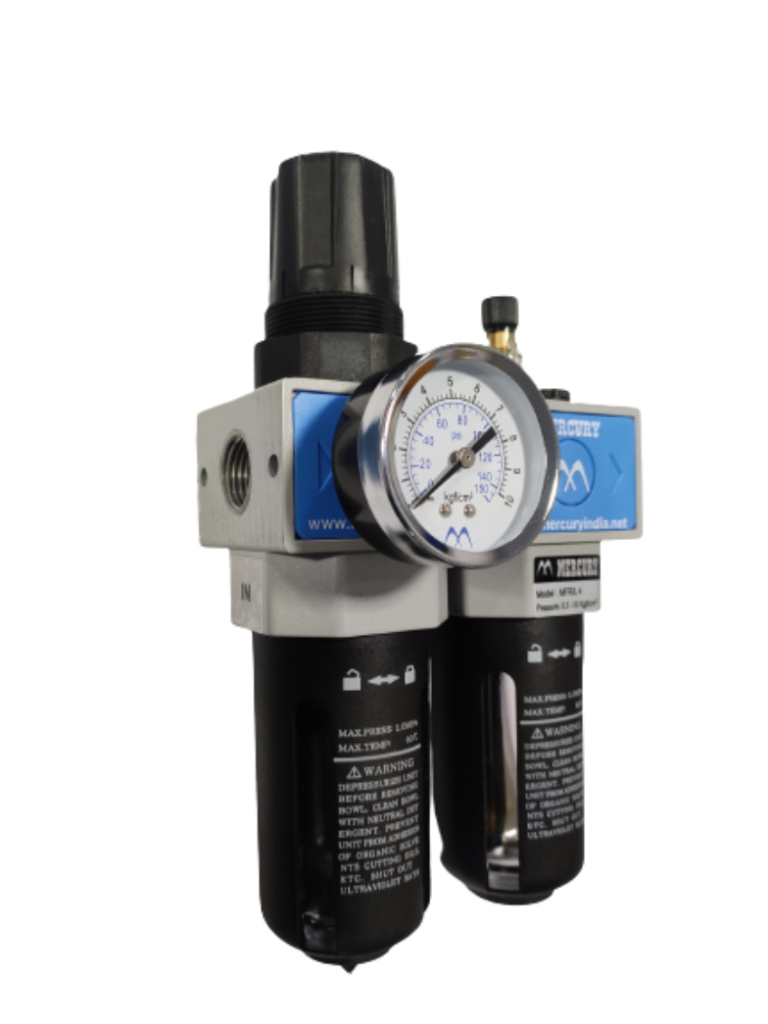

| MFR+L 4 | Series ‘M’- 1/2” Filter Regulator + Lubricator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

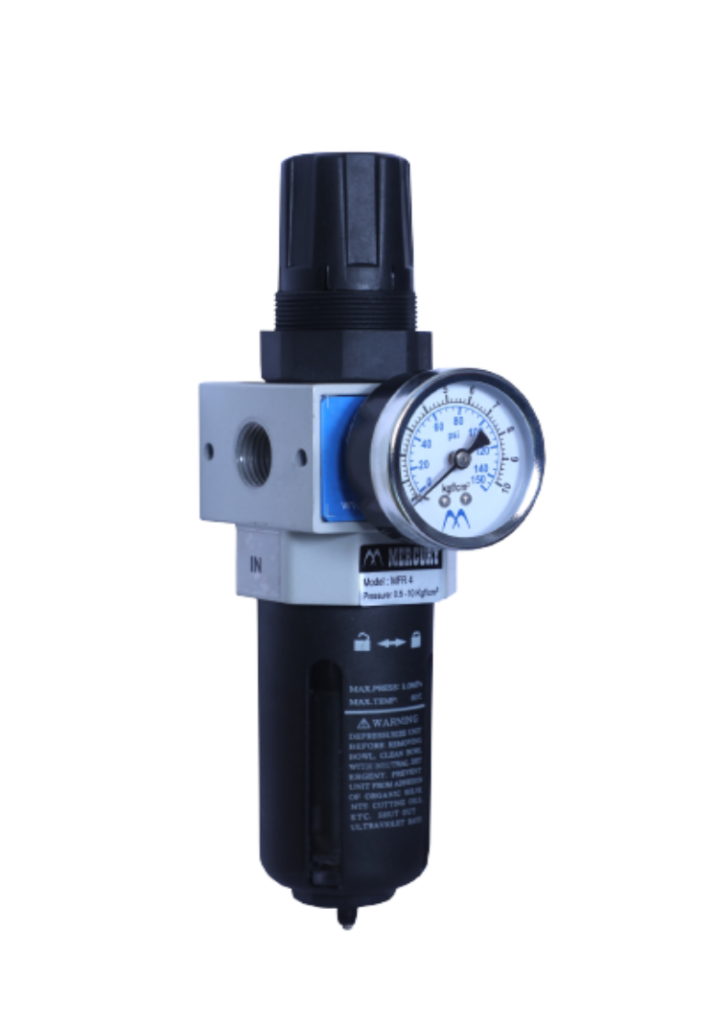

| MFR 4 | Series ‘M’- 1/2” Filter Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

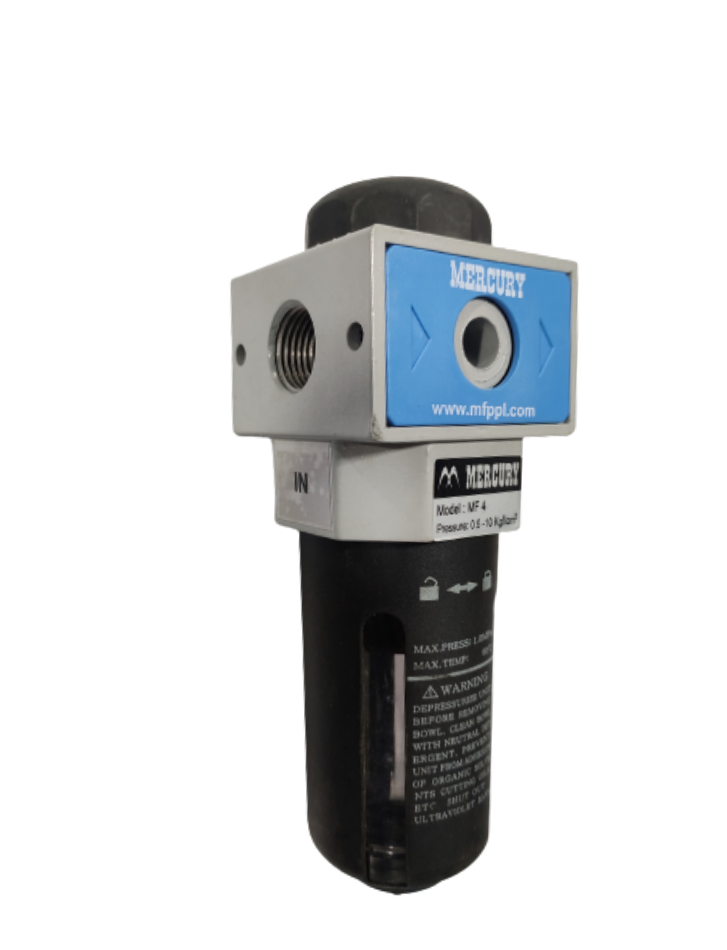

| MF 4 | Series ‘M’- 1/2” Filter |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

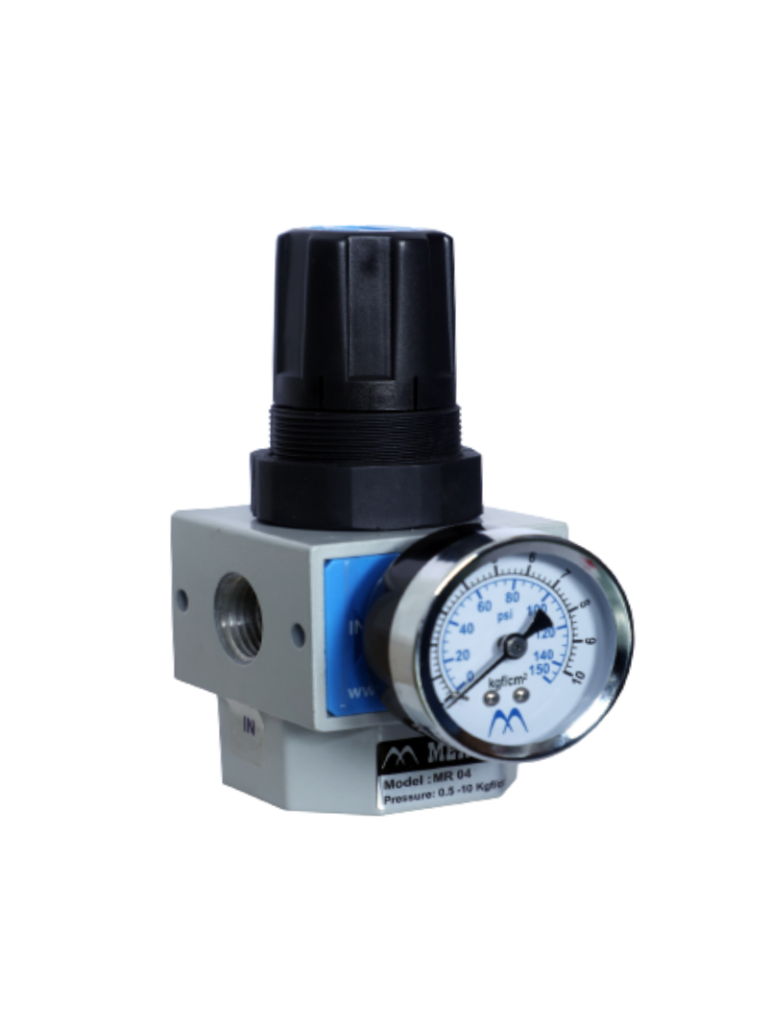

| MR 4 | Series ‘M’- 1/2” Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering

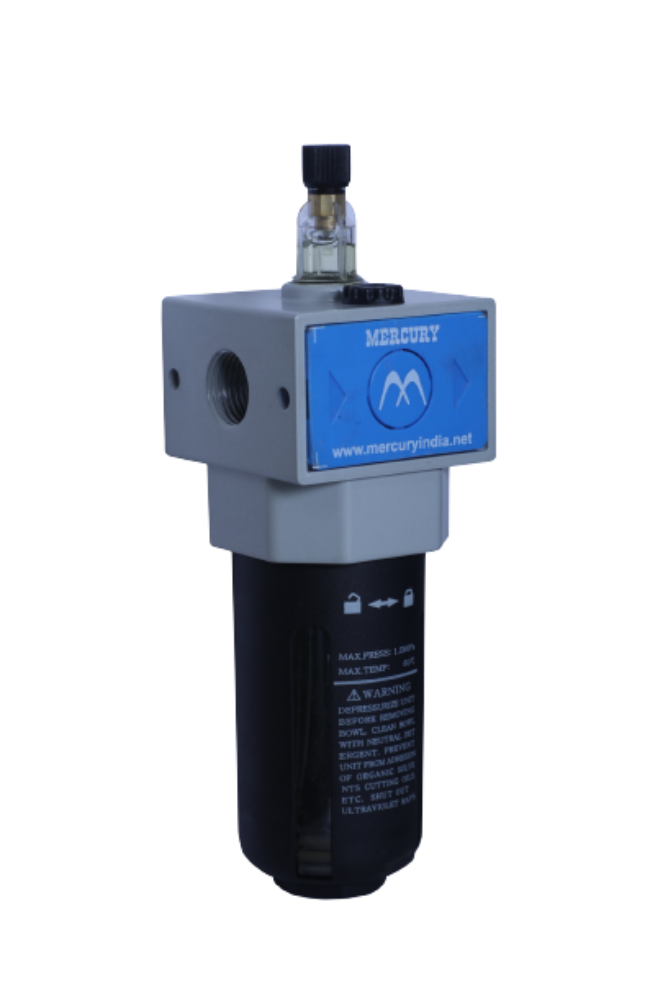

| Model No. | Description |
|---|---|
| LL 6 | Series ‘L’: 3/4″ Lubricator |
| LL 8 | Series ‘L’: 1″ Lubricator |
- Streamlined modular construction
- Easy to dismantle & service
- Leak proof ‘O’ Ring joints between units
- 40µm filter as standard, 5µm optional
- Regulator knob “Push to Lock” design
- Low rate spring and fine pitch threads ensures fine and smooth regulation of air pressure.
- Semi Automatic drain on filter bowl
- Fine pitch, small taper fine adjustment screw on lubricator ensures good control over oil flow setting.
*Add Voltage & Connector Suffix While Ordering
