Series M Manually Operated Presses
Series M Manually Operated Presses

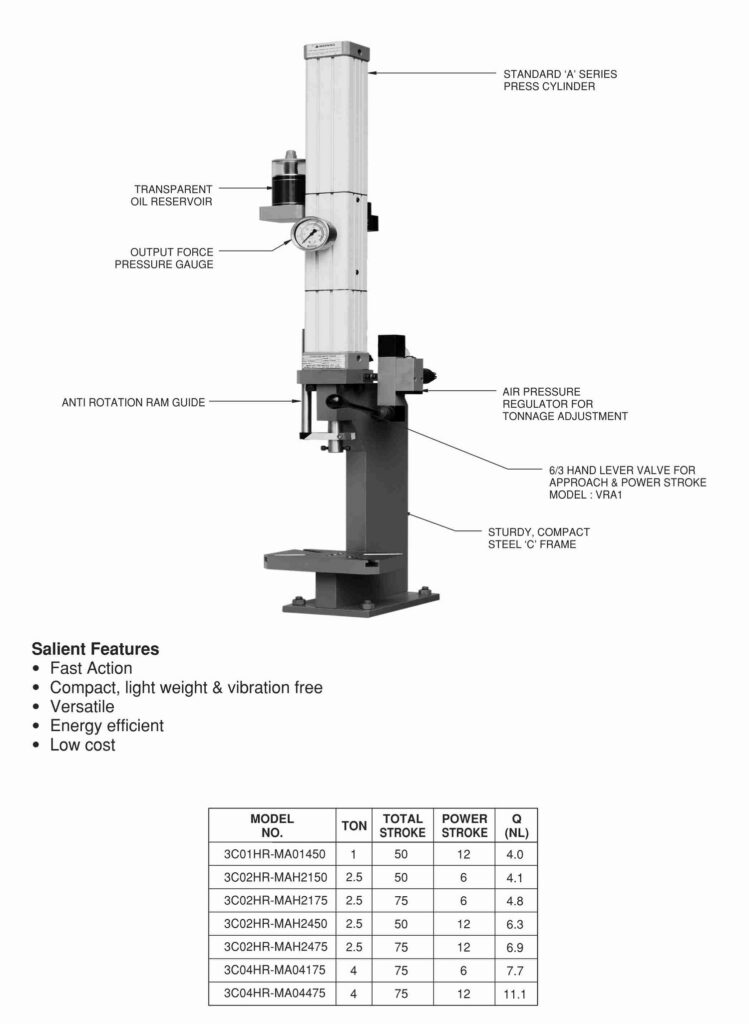

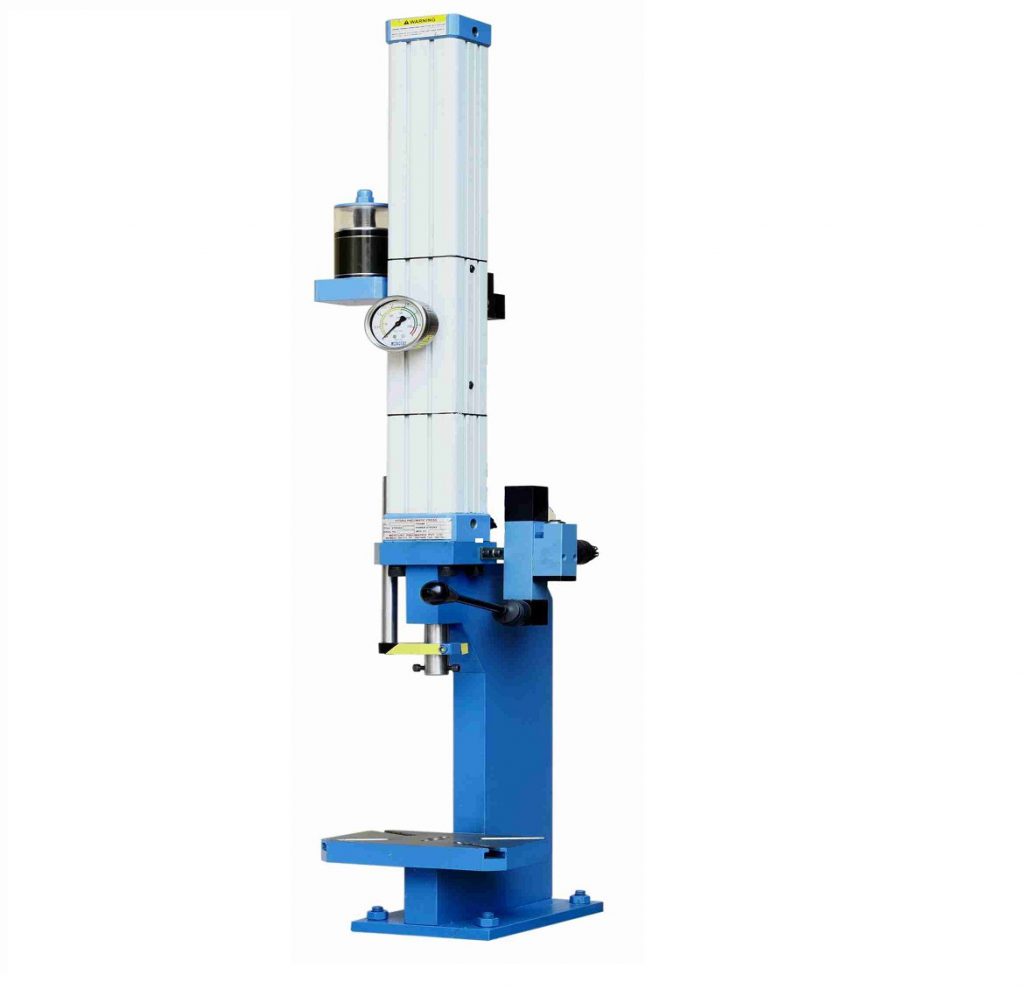

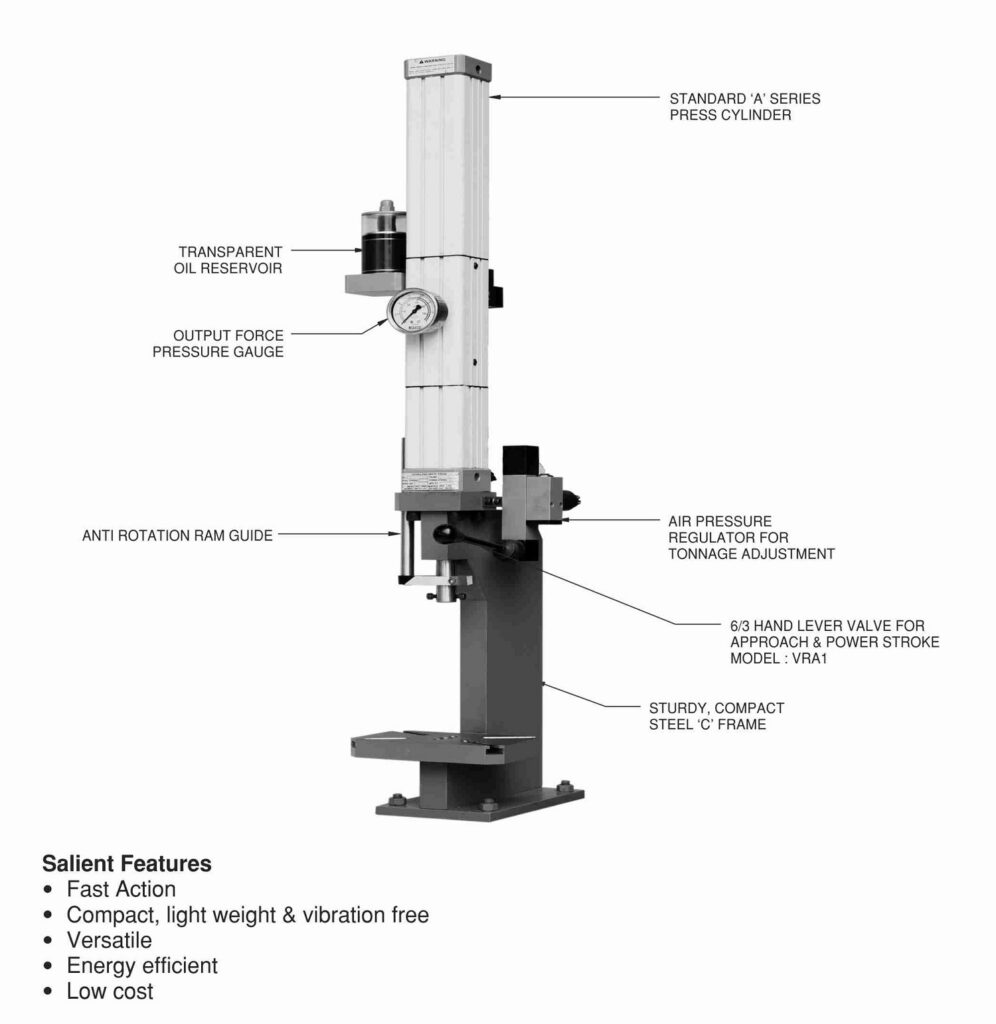

Series ‘M’ manually operate presses were launched as a compact low cost systems eliminating the use of electronics. These systems are actuated manually with a hand lever valve and used in areas where only basic functionality is required and use of electronics is not preferred.
| MODEL NO. | TON | TOTAL STROKE | POWER STROKE | Q (NL) |
|---|---|---|---|---|
| 3C01HR-MA01450 | 1 | 50 | 12 | 4.0 |
| 3C02HR-MAH2150 | 2.5 | 50 | 6 | 4.1 |
| 3C02HR-MAH2175 | 2.5 | 75 | 6 | 4.8 |
| 3C02HR-MAH2450 | 2.5 | 50 | 12 | 6.3 |
| 3C02HR-MAH2475 | 2.5 | 75 | 12 | 6.9 |
| 3C04HR-MA04175 | 4 | 75 | 6 | 7.7 |
| 3C04HR-MA04475 | 4 | 75 | 12 | 11.1 |
*Add Voltage & Connector Suffix While Ordering
