Series S – 1/4″ Units
Series S – 1/4″ Units

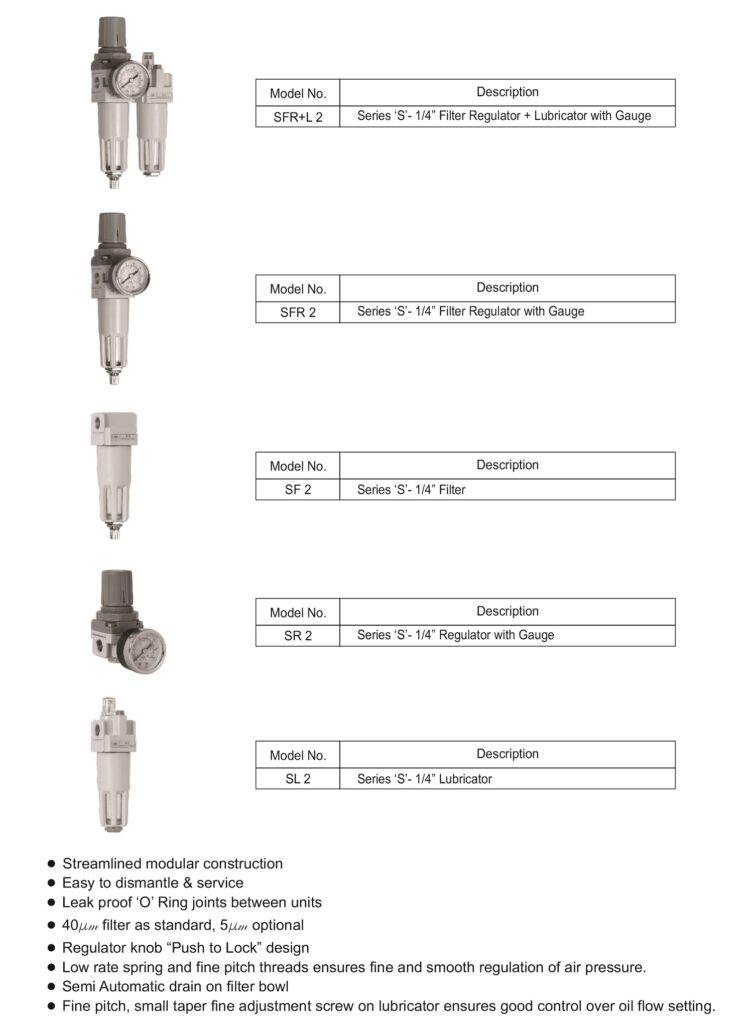

Below all the details of the various units available in 1/4″ BSP part sizes. Kindly refer attached data sheet for all dimensional details and operating parameters.
| Model No. | Description |
|---|---|
| SFR+L 2 | Series ‘S’ – 1/4” Filter Regulator + Lubricator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|
| SFR 2 | Series ‘S’ – 1/4” Filter Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|
| SF 2 | Series ‘S’ – 1/4” Filter |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|
| SR 2 | Series ‘S’ – 1/4” Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|
| SL 2 | Series ‘S’ – 1/4” Lubricator |
*Add Voltage & Connector Suffix While Ordering
- Streamlined modular construction
- Easy to dismantle & service
- Leak proof ‘O’ Ring joints between units
- 40μm filter as standard, 5μm optional
- Regulator knob “Push to Lock” design
- Low rate spring and fine pitch threads ensures fine and smooth regulation of air pressure
- Semi Automatic drain on filter bowl
- Fine pitch, small taper fine adjustment screw on lubricator ensures good control over oil flow setting
*Add Voltage & Connector Suffix While Ordering
