Series L- ¾” and 1” units
Series L- ¾” and 1” units

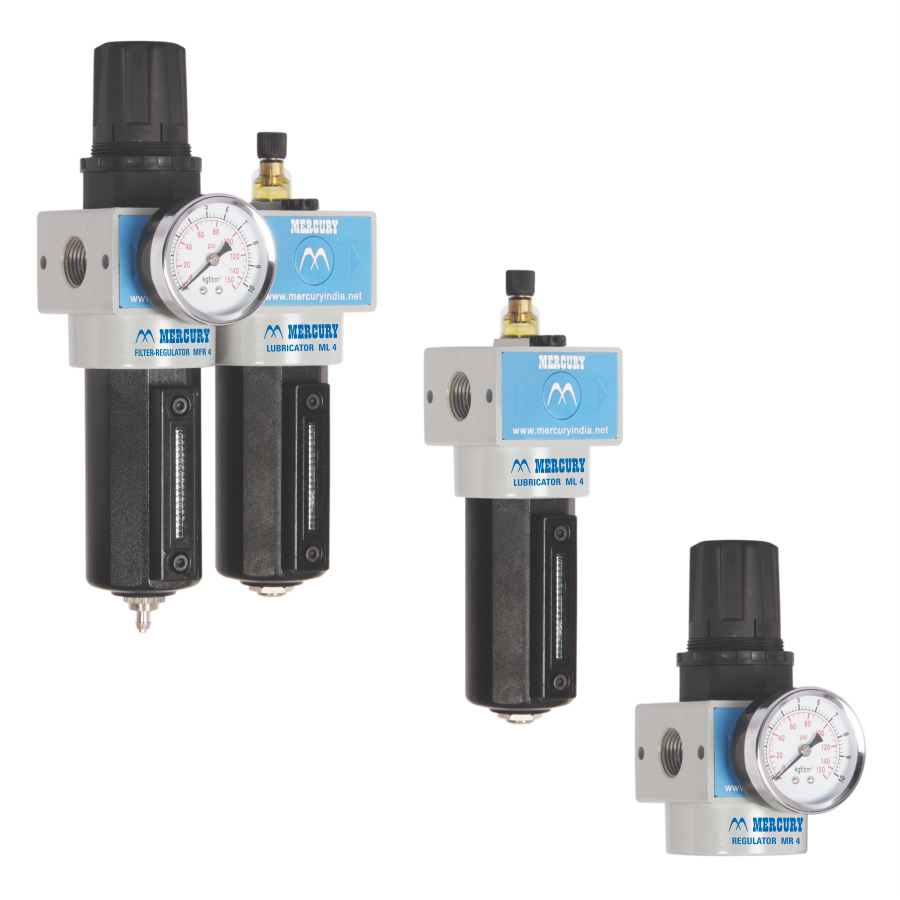

Below all the details of the various units available in 3/4″ & 1″ BSP part sizes. Kindly refer attached data sheet for all dimensional details and operating parameters.
| Model No. | Description |
|---|---|

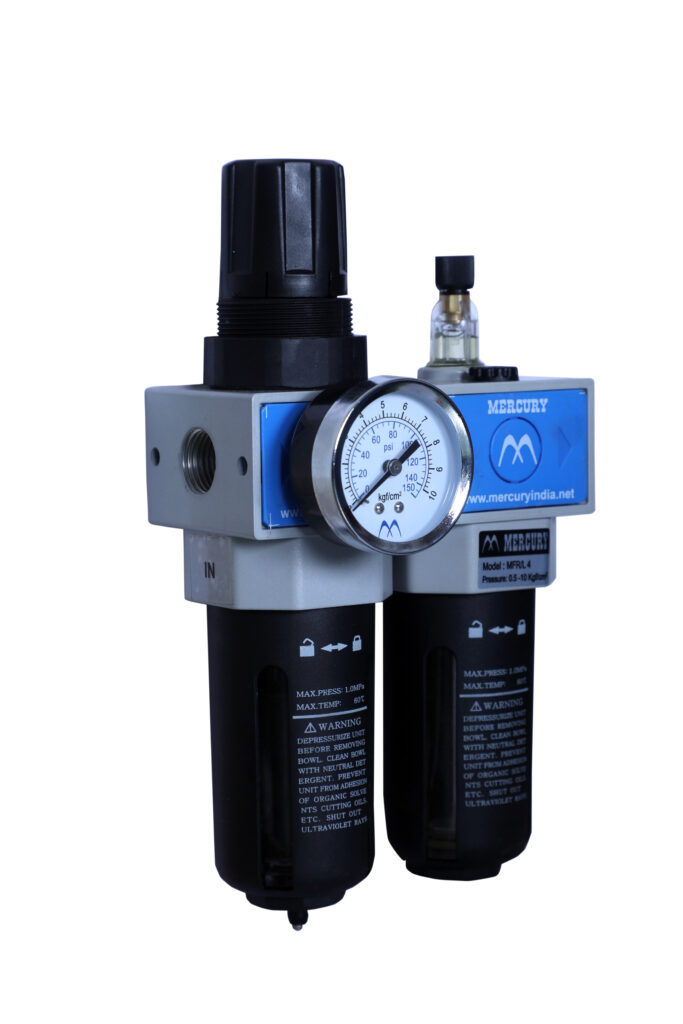

| LFR+L 6 | Series ‘L’: 3/4″ Filter Regulator + Lubricator with Gauge |
| LFR+L 8 | Series ‘L’: 1″ Filter Regulator + Lubricator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

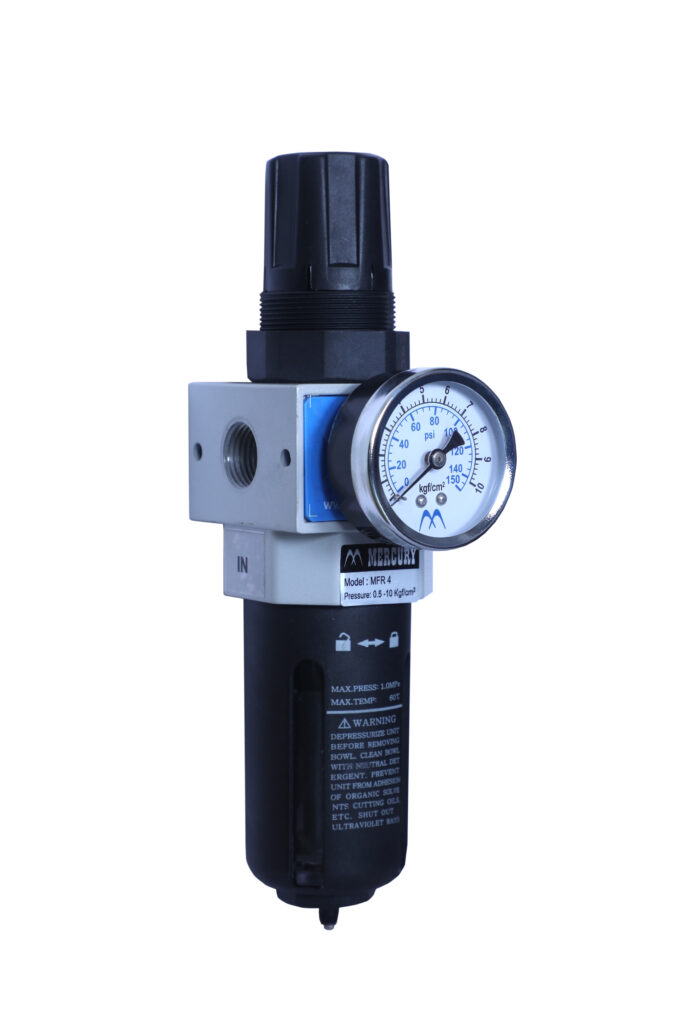

| LFR 6 | Series ‘L’: 3/4″ Filter Regulator with Gauge |
| LFR 8 | Series ‘L’: 1″ Filter Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

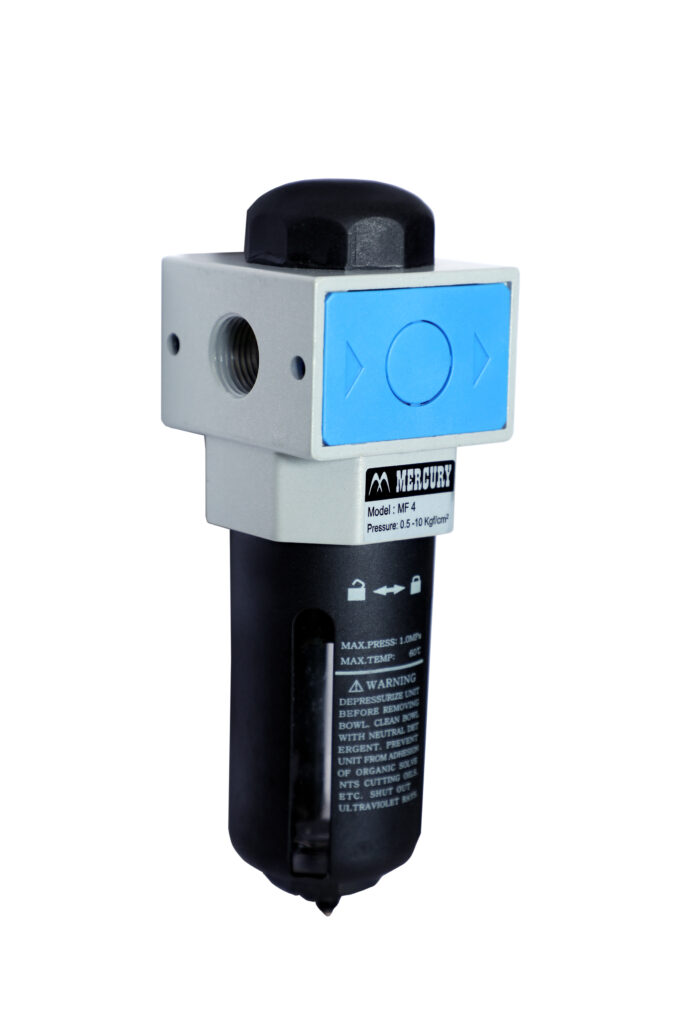

| LF 6 | Series ‘L’: 3/4″ Filter |
| LF 8 | Series ‘L’: 1″ Filter |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|
| LR 6 | Series ‘L’: 3/4″ Regulator with Gauge |
| LR 8 | Series ‘L’: 1″ Regulator with Gauge |
*Add Voltage & Connector Suffix While Ordering
| Model No. | Description |
|---|---|

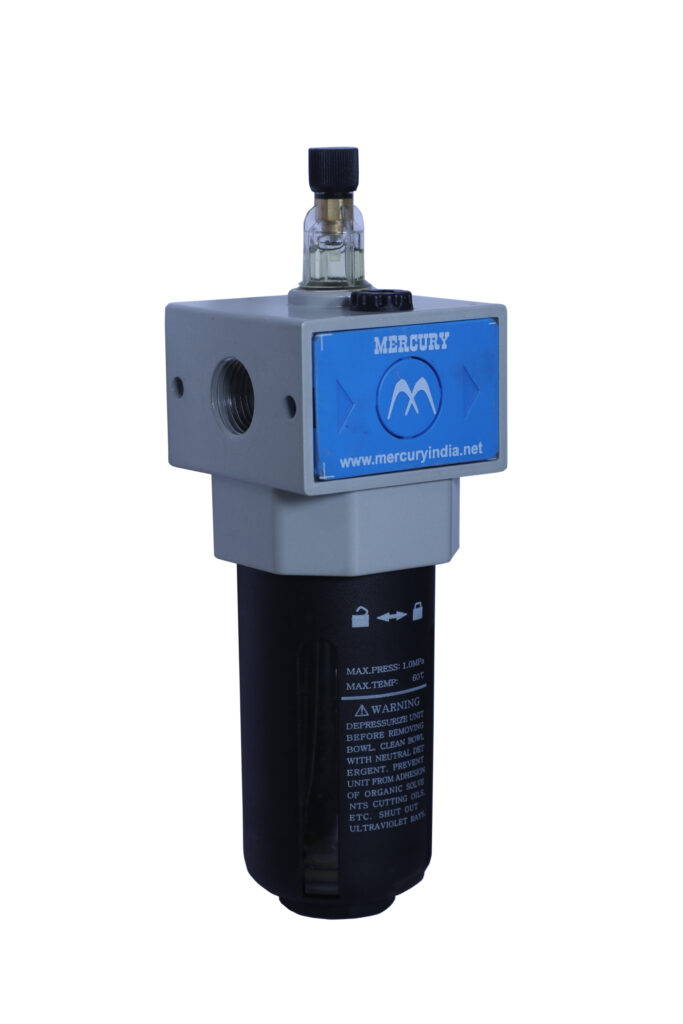

| LL 6 | Series ‘L’: 3/4″ Lubricator |
| LL 8 | Series ‘L’: 1″ Lubricator |
- Streamlined modular construction
- Easy to dismantle & service
- Leak proof ‘O’ Ring joints between units
- 40µm filter as standard, 5µm optional
- Regulator knob “Push to Lock” design
- Low rate spring and fine pitch threads ensures fine and smooth regulation of air pressure.
- Semi Automatic drain on filter bowl
- Fine pitch, small taper fine adjustment screw on lubricator ensures good control over oil flow setting.
*Add Voltage & Connector Suffix While Ordering
